56m Hydraulic Concrete Pump Engine Stage III Sym5449thbf 560c-8A

Product Description

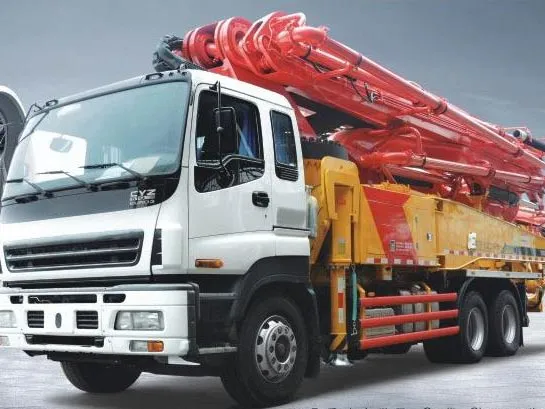

56m Hydraulic Concrete Pump Engine Stage III Sym5449thbf 560c-8A
Product Description
One-button Technology(for 53m and above TMCP) One-button fixed boom position function quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose. Boom Anti-Vibration Technology(for 53m and above TMCP) The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose. Energy-saving Technology When system pressure reaches 12Mpa:No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%. Anti Overswing Technology To use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%. Self-diagnosis Technology Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Optional parts 1) Automatic leveling device 2) Front bulldozing blade 3) Rear ripper 4) Heavy-duty blade
Product Parameters

Item	Unit	SYM5445THBFS 560C-8A
Outline dimension	mm	14080*2550*4000
Overall weight	kg	44000
Brand	/	Benzz
Vertical Reach	m	56
Horizontal Reach	m	51
Reach Depth	m	36.6
Emission standard	/	China VI
Theoretical	m³/h	180
Concrete pumping pressure	MPa	8.3/12
Chassis model	/	SYM5440THB1F
Engine type	/	D13C6-480E0
Engine Maximum Net Power	kW/rpm	348/1900
Fuel Tank Capacity	L	600
Pipe Diameter	mm	125
Displacement	L	12.94
Transfer	/	Rock valve/S valve
