YZH Pedestal Rockbreaker boom System

Product Details

Product Description

Product Description

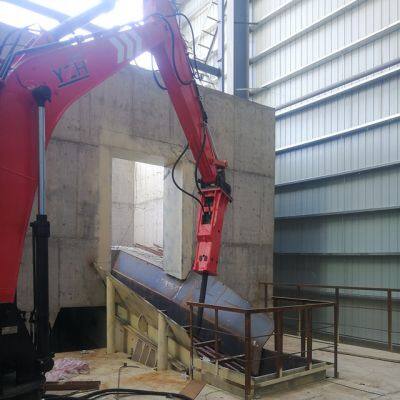

YZH Pedestal Rockbreaker boom System
The working principle of the pedestal rock breaker boom system:
A pedestal rock breaker boom system uses a hydraulic hammer as a crushing tool to convert hydraulic energy into mechanical energy by changing the oil circuit, causing the piston rod to move up and down at high speed, and then hammering the drill rod. The drill rod floats inside the body of the hydraulic hammer, and the tip of the drill rod points towards the crushed material - ore. In this way, the ore is crushed by the impact force of the hammer head and drill rod, completing the crushing task. In order to quickly capture the force point and impact direction of the broken object. By using a planar variable amplitude mechanism consisting of a large arm, two arms, crank, connecting rod, and rotating hammer, as well as a rotary mechanism, a hammer with five degrees of freedom is formed, which can quickly capture the striking object, striking point, and striking direction in three degrees of space. This planar mechanism can greatly improve the efficiency of crushing work.
Main parameter:

Model No.		WHD1250
Boom weight(without hammer)	kg	12430
Max.Horizontal Working radius	mm	14470
Max.vertical working radius	mm	12200
Min.vertical working radius	mm	3470
Max.Height	mm	9010

Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation

---
