Powder Material Are Uniformly Mixed 3D Mixer Syh-20

Product Description

Product Description
The mixing barrel of the machine moves in multi-direction. For the materials ,there is no centrifugal function ,without the specific gravity segregation and the layer division .For each of build-up phenomenon ,there is the remarkable weight rate The mixing rate is up to 100%.The machine is the desired product in various mixers at present.
Features:
The barrel material charge rate is big .Maximum rate can be up to 90%(the common mixer has only 40% charge rate).It is high in efficiency and short in the mixing time.
The barrel uses the curve connection .The barrel has passed the fine polish treatment .The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmacy,chemical,food,light-undustry,electronic,mechanicall.metallurgical,nation defence industries and other science and technology institutes The barrel for charging the materials is friben by thedribing shaft .The barrel body carry on the repeated level movement ,rotation ,turning and other complex movements so that the materials so that the materials will carry out the three dimensional and complex movements along the barrel body so as to fulfile the various movements of the materials .Through the dissemination ,gathering ,adding other matter ,the aim for the uniform mixing can be gained.

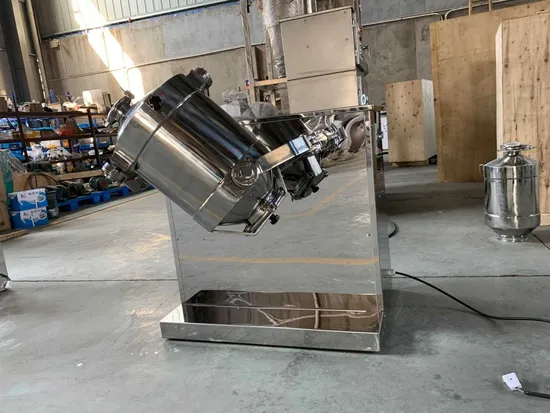

Detailed Photos
Product Parameters

Model	SYH-1	SYH-5	SYH-15	SYH-50	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000
barrel volume(L)	1	5	15	50	100	200	400	600	800	1000
Max. Loading capacity(L)	0.8	4.5	13.5	45	90	180	360	540	720	900
Max. Loading weight(kg)	0.5	2.4-4.5	7.5-13.5	25-45	50-90	100-180	200-360	300-540	400-750	550-900
Speed of driving shaft(r/min)	15-30		8-15
Motor power(Kw)	0.12	0.25	0.37	1.1	1.5	2.2	4	5.5	7.5	7.5
Overall dimension (mm)	500×600×600	600×1000 ×1000	800×1200 ×1000	1150×1400 ×1300	1250×1800 ×1550	1450×2000 ×1550	1650×2200 ×1550	1850×2500 ×1750	2100×2650 ×2000	2150×2800 ×2100
Total Weight(kg)	50	150	200	300	800	1200	1200	1500	2000	2500

Packaging & Shipping
Company Profile
Shanghai Zixiong Pharmaceutical Machinery Company established in 2010,is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment such as tablet press machine,capsule filling machine,liquid filling machine,soft and hard blister packing machine,tablet or capsule counting and filling production line,soft-gel production line etc.
Shanghai Zixiong Pharmaceutical Machinery Company located in Shanghai, China where is about 30 minutes by car from Hongqiao train station or Hongqiao airport, very easy to get to and naturally suited to communicate and trade with worldwide clients.
Shanghai Zixiong Pharmaceutical Machinery Company occupied ISO system and CE certificates, with a disciplined factory and fairly professional technical engineers.We have the capabilities to design and develop many types of machinery and equipment, also provide personalized customized service for you. Besides machinery and equipment, we also can supply a full set of production lines which specific based on you requirements. We welcome OEM and ODM orders.
Shanghai Zixiong has sold the products to all over the world for decades years, such as USA, Australia, Canada, UK, Russia, Germany, Sweden, Japan, Korea, India, Indonesia, Pakistan, Southeast Asia, Middle East, South America , Africa and so on.
We believe that quality of product is the soul of a company. With decade years to provide strict quality control and thoughtful customer service, Zixiong has rewarded with high customer satisfy and built up good reputation worldwide.
Shanghai Zixiong Pharmaceutical Machinery Company must be one of your best partner in the future, we are looking forward to receive your inquiry.
