| US$6,200.00-20,000.00 | 1 Piece (MOQ) |

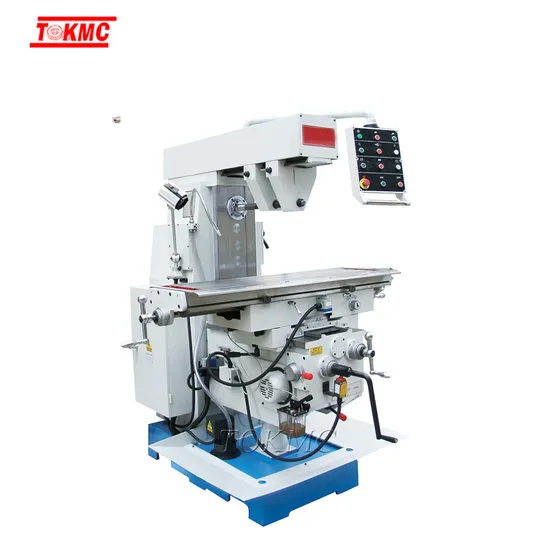

| Item | T320Z |
| Spindle taper | ISO40 (V/H) |
| Distance from vertical spindle nose to table | 0-390mm |
| Distance from horizontal spindle center line to table | 0-280mm |
| Distance from vertial spindle center line to column | 465mm |
| Distance from horizontal spindle center line to ram bottom | 160mm |
| Spindle speed range | 12 steps,40-1300 rpm |
| Swivel angle of milling head | +/- 360 degree |
| Table size LxW | 125x320mm 1500x320mm |
| Table travel | 600(800)x300x350mm 1100/300/350mm |
| Table longitudinal and cross travel | 8steps, 22-555 mm/min |
| Table vertical feed Z | 8 steps, 17-190 mm/min |
| X,Y-axis rapid feed speed | 1080 mm/min |
| Z-axis rapid feed speed | 590 m/min |
| Feed motor power | 750w |
| Max.loading worktable | 300kg |
| Table T-slot (No.-width-pitch ) | 3/14/70 mm |
| Y,Z axes guideway | Rectangular |
| X axis guideway | Dovetail |
| Main motor power | 2.2 kw |
| Overall size | 1700x1500x2150mm |
| Package size | 1680x1600x2250 mm |
| N.W/G.W | 1550/1800 kgs |
