US$2,980.00-3,780.00
|
14 PCS
(MOQ)
|
Basic Info.
Certification
CCC, EEC, CQC
Braking Mode
Front and Rear Disc Brakes
Cooling Method
Water Cooling
Structure of Engine
in-Line Double Cylinder
Transport Package
Iron+ Carton
Specification
2150*870*1480mm
Trademark
BOSSLINE OR OEM
Production Capacity
2000PCS/Month
Packaging & Delivery
Package Size
215.00cm * 87.00cm * 148.00cm
Package Gross Weight
240.000kg
Product Description

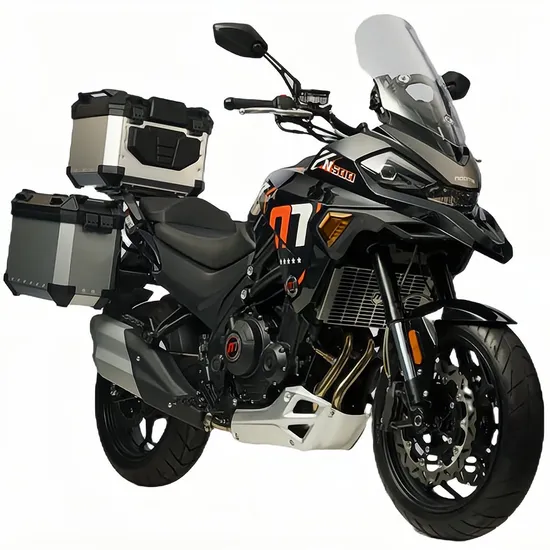

Big displacement & high performance ADV & Rally motorcycle, engine, ECU optimization calibration, configuration comprehensive upgrade, using steel pipe + aluminum alloy combined frame, frame rigidity performance is much better. Shock absorption, in the same class of car, the performance is more outstanding. The effective stroke is about 160mm, and supports manual adjustment damping, which can take into account both movement and comfort. The two knobs at the top of the damping tip allow quick and easy adjustment, even when riding. The sudden switch from road to unpaved surface, the shock absorption to the soft setting, with three boxes in the Gobi, very SUV characteristics.
| Model Size: | 2150*870*1480mm |
| Axis pitch: | 1490mm |
| Ground clearance: | 196mm |
| Maximum speed: | 150km/h |
| Engine model: | 267MR-A |
| Structure of engine: | In-line double cylinder |
| Stroke: | Four stroke |
| Maximum power: | 35Kw/8500rpm |
| Maximum torque : | 45N.m/7000rpm |
| Mode of cooling: | Water cooled |
| Displacement : | 500cc |
| Precise displacement : | 471ml |
| Valve valve structure: | DOHC 8 valves |
| Cylinder diameter & stroke : | 67X66.8mm |
| Oil supply mode: | Fuel injection |
| Ratio of compression: | 10.7:1 |
| Mode of ignition: | EFI |
| Start up mode: | Electric |
| ROZ: | No. 92 |
| Effluent standard: | The |
| Lubrication method: | Pressure & splash |
| Transmission type: | 6 speed international gear |
| Type of clutch: | Manual wet multi-chip |
| Mode of transmission: | Chain drive |
| Balance shaft: | Built in Balance shaft |
| Braking mode: | Hydraulic disc brake +ABS |
| Form of tire: | Vacuum tire |
| Tire Specifications: | 120/70-17; 160/60-17 |
| Hub form: | Aluminium alloy |
| Hub specifications: | Eur 4 |
| Lighting form: | LED |
| Suspension system: | Fr: Upside down |
| Rr:Central subtraction |
| Tank capacity: | 18L |
| ECO consumption: | 4.2L/100km |
| Battery Specifications: | 12V9AH |
| Form of instrument: | TFT color screen |
| Rated load: | 150kg |
| Net weight: | 196kg |
| Gross weight: | 240kg |
| Method of Packing: | Iron frame and carton |
| Package Size: | 2100*680*1150mm |
| Loading quantity: | 20GP:14 sets |
| 40HQ:34 sets |
>>
