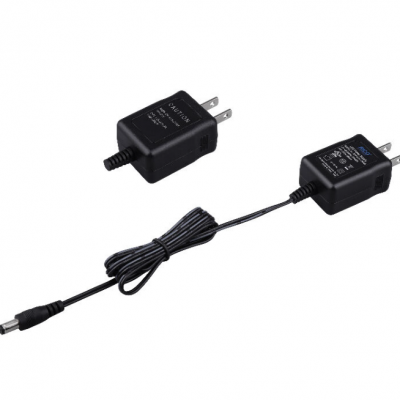

6W 12VDC 500mA AC DC Adapter UL/CUL /PSE passed

Product Details

Product Description

Product Description
6W 12VDC 500mA AC DC Adapter UL/CUL /PSE passed
Model NumberBrand NameoriginSmall Orders

RKPO-UL120500-#4555
Anenerge
China
Accepted

Key Specifications/Special Features:
AC DC Adapter/LED Driver/LED Power Supply
Model No.: RKPO-UL120500
Key Specifications:
Input voltage: 100-240Vac
Input frequency range: 50/60Hz
Efficiency: more than 80%
Output voltage: 12Vdc
Output current: 500mA
Output power: 6W
Output with UL 2464, UL2468 300V 80℃, 22AWG Min
No loading power consumptions: less than 0.1W
With 2-4 hours full load burn-in test and 100% hi-pot test
Operating temperature: -30 to 60℃
Storage temperature: -40 to 80℃
Humidity range: 35 to 80% RH
Constant voltage precision: ±5%
MTBF: ≥ 60000 hours at 25℃
Dimansions: 74x29x63mm
Weights: 0.082kg
Special Features:
Type: direct plug-in
Universal AC input/full range
Certificates: UL/CUL/PSE
Safety compliance: UL1310+UL8750
Efficiency standard: VI, DOE, NRCan, ERP, CEC, CoC V5 Tier2
Protections: SCP, OVP, OCP and OTP
Waterproof IP20 for dry location
High sturdyness and light weight
Low working temperatures
Low noise, energy saving and environment friendly
Fire-proof plastic case and cooling by free air convection
Compact size and low cost
Low ripple design
3 years lifespan(working time: 2-5 years)
Custom:
OEM/ODM orders are accepted
Applications:
POS machine
LED lights
Medical equipment
Indoor household appliances
Input voltage: 100-240Vac
Input frequency range: 50/60Hz
Efficiency: more than 80%
Output voltage: 12Vdc
Output current: 500mA
Output power: 6W
Output with UL 2464, UL2468 300V 80℃, 22AWG Min
Dimansions: 74x29x63mm
Weights: 0.082kg
Product Certifications
Certificate StandardCertificate ImageCertificate NumberValidityIssued By

UL
Click on the picture to see a larger one
E467791-20160815
From 2016/08/17 To 2025/08/16
UL LLC

Certificate StandardCertificate ImageCertificate NumberValidityIssued By

GS
Click on the picture to see a larger one
Z1A 090755 0016 Rev.00
From 2019/01/10 To 2024/12/24
TUV SUD Products Service GmbH

Certificate StandardCertificate ImageCertificate NumberValidityIssued By

SAA
Click on the picture to see a larger one
SAA-192783-EA
From 2019/10/10 To 2024/10/10
SAA Approvals Pty Ltd

Certificate StandardCertificate ImageCertificate NumberValidityIssued By

UKCA
Click on the picture to see a larger one
UKCA GZES2106021725LM
From 2021/09/10 To 2025/09/10
SGS-CSTC

Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.
Shipping Information
FOB PortWeight per UnitHTS CodeExport Carton Dimensions L/W/H

Shenzhen
0.082 Kilograms
8504.40.99 99
47.5 x 28.0 x 36.0 Centimeters

Lead TimeDimensions per UnitUnits per Export CartonExport Carton Weight

15–18 days
7.4 x 2.9 x 6.3 Centimeters
165.0
16.8 Kilograms

Main Export Markets- Asia
- Australasia
- Central/South America
- Eastern Europe
- Mid East/Africa
- North America
- Western Europe
Company Profile
Shenzhen sominyu Co., Limited
Shenzhen sominyu Co., Limited, established in 2008 , Be specialize in Battery Charger,AC DC power supply,Lithium ion Battery Charger,LiFePO4 Battery Charger etc..the production of products widely used for Standard Battery, scooter, electric car, electr bike, electric faucet, routers, security equipment, Statistics equipment category, there are two plants were set up with thetotal area of about 3,500 square meters, more than 35employees, with 3 lines of Panasonic SMT automated assembly, 2 lines of automatic import plugin equipments, and introduced has full automatically test equipment and the laboratory.In 2008, the company has passed the ISO9000 quality management system, certified by the CCC, UL, TUV. UKCA, CB, CE, SAA, DOE level VI and other safety regulations, the company's products comply with ROHS, PAHs and other environmental requirements, meet the energy star level five, the level five of European ERP energyefficiency standards.Various switching power supply with an annual output of 15 million sets, to establish a partnership with China local famous companies.Also, the product are exported to Europe, the Americas, the Middle East and Southeast Asia and other countries.Our company committed to the development and production of high energy-saving power supply products, to provide customers with high efficiency, low loss, up to five of the Energy Star power product responsibility, to contribute to the global energy conservation environmental protection. Hope have a nice cooperation with you,serve and produce every high quality products you want from China.Thanks for your Free comments and contact very much!
