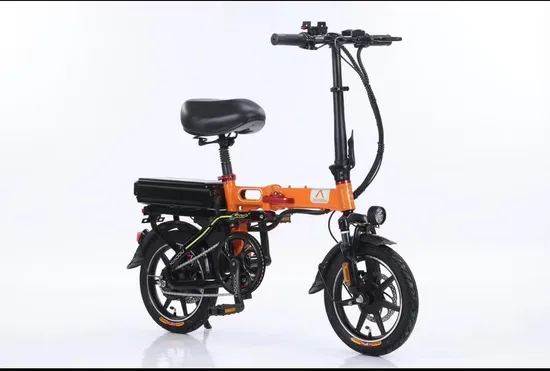

Compact Folding Electric Bicycle for Urban Commuting and Travel

Product Description

Product Parameters

Color	Elegant white, diamond black, mysterious grey, etc
Size	Expansion: 1284*1045*530mm; Folding: 731*600*357mm; Packing: 785*707*353mm
Weight	17.5Kg; Gross weight (including package, vehicle, accessories) : 21Kg
Frame	16 inch main frame: American alloy, independent research and development (integrated molding without welding)
Handlebar Cross Tube	PROMAX
The Wheel Crank	Crank assembly of big tooth disc: integrated tooth disc 3/32*52T*165mm
Chain	Taiwan PYC(US Asia) single speed chain
Pedal	Hengfeng pedal model is HF-661 Specification: 9/16 opposite side hexagon DU CHP-001 anti-BK

Disc brake clamp: Czech Republic	Model: ER-1 Front plate 140mm rear plate 180mm
Tyre	Front and rear chaoyang 16*1.75 set of tires
Instrument	New thinking model: LCD-S5 protocol instrument
Battery	36V 5.2AH/8AH/10AH 21700 battery core, charging fuse 10A, discharge fuse 30A;
	Operating current 15A, charging voltage 42V, undervoltage protection 27.5V
Clutch motor	Rated power 250W rated voltage 36V, working current 13A;Famouse brand
	Noise ≤50CB maximum twist: ≥25NM; Waterproof: IP65
Controller	6 tube sine wave controller current limit: 14±1A undervoltage: 29±1V

Sensor	Speed sensor operating voltage: 4.5-6V lead pull > 20 Newton quiescent current < 5 mA
	Number of pulses 12 Waterproof grade IP65
	Torque sensor operating voltage: 4.5-6V lead tension > 20 Newtons static current < 5 mA number of pulses 12 point traction tension > 20 Newtons Hall response time < 0.001 seconds wet insulation > 2 megohm
Headlight, switch, power brake	Famouse brand

Endurance	40 km pure electricity/ 60 km power assistant
Riding mode	Pure electricity, power, manpower three riding modes

Product Description
Detailed Photos Product Display
Our Advantages 1,Xiaodu folding electric vehicles are made of innovative high-end materials in the aerospace magnesium alloy industry, highlighting the symbol of high-end honor.
2,The appearance level is high to the explosion: the whole vehicle has no welding, die-casting molding, high-end atmosphere, fashion, lightweight, small and exquisite. Folding lithium tram ceiling magnesium to the extreme.
3, Xiaodu electric vehicle, elaborate design, master craftsmanship, industry patent technology manufacturing
