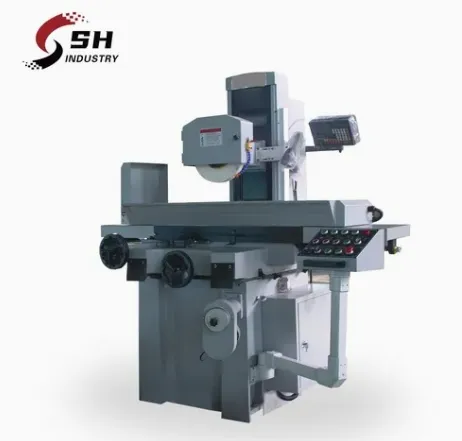

High Precision Hydraulic Flat Grinding Machine Price (Surface Grinding Equipment MY1230)

Product Description

High Precision Hydraulic Flat Grinding Machine Price (Surface Grinding Equipment MY1230)
Product Description
Longitudinal movement is controlled by hydraulic system\
Transverse movement is controlled by electric motor
Up and down movement is controlled by lift motor

Specifications					Units	MY1230
workbench	Worktable size (L * W)				mm	750×300
	Max. travel of table				mm	780×320
	Table T slot (slot number x slot width)				mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)				mm	Φ300×30×Φ76.2
	Distance spindle center line to working table				mm	520
	Grinding wheel speed			50HZ	r/min	1450
				60HZ	r/min	1680
The amount of feed	Table longitudinal (left and right) speed				m/min	3-20
	Transverse (front and rear) feed handwheel feed		Continuous (stepless)		mm/min	600
			Intermittent (stepless)		mm/times	0-6
			Handwheel per turn		mm	4.0
			Handwheel per lattice		mm	0.02
	The vertical (up and down) feed handwheel feed		Handwheel per turn		mm	2.0
			Handwheel per lattice		mm	0.01
	Grinding head up and down is fast lifting speed (approximate value)				mm/min	360
Hydraulic system	Hydraulic motor				kw	2.2
	working pressure				Mpa	4
	Fuel tank capacity				L	100
	Maximum flow rate				L/min	20
Motor power		Spindle motor			kw	2.2
		Cooling motor			W	40
		Elevator motor			W	120
working accuracy		The process surface of the base level of the parallel degree			mm	300:0.005
		Surface roughness			μm	Ra0.32
Machine weight		Net weight			kg	1400
		Gross weight			kg	1530
External size (L * w * h)					mm	1960×1480×1850
Packing size (L * w * h)					mm	2000×1640×2020

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
