Customized Intermesh Rotor Rubber Banbury Mixer

Product Description

Customized Intermesh Rotor Rubber Banbury Mixer Company Introduction:
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based"since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Product Information:
Putting discarded tires on fork and rising it to a fixed location by hydraulic system ,then cutting the tires by upper moverable dividing the discarded tires, plastic,metal and other materials.
1.The rolls of this machine is elliptical type rotor. The working surfaces of the rotor is made of welded wearable hard alloy. The working surface of the mixing chamber and the pressing ram device are experienced the treatment of hard chrome plating. Which is corrosion proof and has long service life.
2.Cycle channel structure is adopted to the rotor, pressing ram device and mixing chamber so as to realize the circulation of the heat transmission medium. According to the requirements of different production technology, we can heat or cool the materials by steaming or using cooling water .
3.The rotor adopts rolling bearing for support, so the maintenance work is convenient and the service life is long.
4.The transmission device adopts NGW hard tooth flank planet reducer, which has compact structure, low noise and high efficiency.
5.The pressing ram device can add pressure to the materials through air cylinder or oil cylinder, to force the materials mixing evently,
upgrading the production efficiency, matching with the electric control, the pressing ram device can fulfill automatic pressuriziation, decompression and floating.
6.The electric control system can be handled manually and automatically and the operation is reliable and the change is convenient. We adopt ordinary apparatus and PLC programming control. The client can choose the way according to his own requirement.
7.The machine adopts rear feeding and hydraulic tilting device for discharging. So the operation steady and reliable. It is very concenient to clean the materials and change the colors.
8.Used in the plasticting ,mixing and final refining of rubber and plastic.

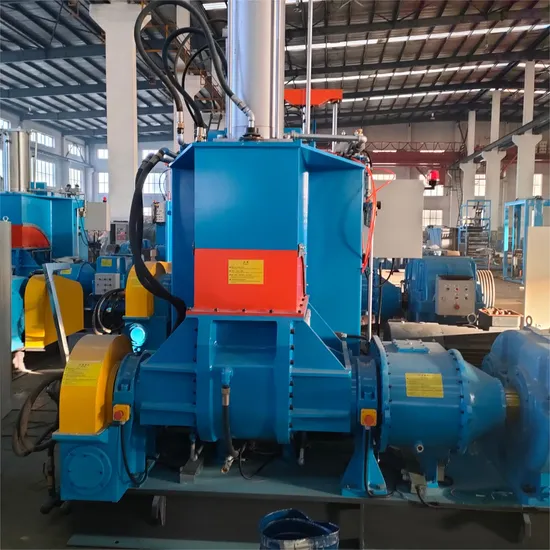

Pictures:
Technical Parameters :

Parameter name	X(S)N-35/30	X(S)N-55/30	X(S)N-75/30
The total volume of the mixing chamber (L)	75	110	175
The total volume of the mixing chamber mixer(L)	35	55	75
The ratio of Before and after of Rotor speed (RMP)	30/24.5	30/24.5	30/24.5
The main motor power (KW)	55	75	110
The main motor speed (RMP)	980	980	990
Dimension of the external form(length*width*height)(mm)	3200*1900*2945	3230×1927×2958	3325×2615×3105

FAQ:
Q:How many days do you need to produce this machine?
A: Usually 15-25 days,it depends on the machine and power mode,
customized type will be 30-45 days,for production line equipments will take 2-3 moths.
Q: How to control your quality ?
A:First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.For the smaller machine we will install the machine at our workshop to make sure it can work well.For the bigger machine, we will install the machine for our customers until it can work well.
Q: What's your machine quality guarantee?
A:Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you install the machine overseas?How long will it take?
A: Yes,we can arrange the engineer to come to help install,need to pay accordingly,like round trip tickets,salary,living and eating,etc.Time depending on the equipment your order,usually 30-60 days.

---
