High Voltage Passive Harmonic Filtering Device Filter for Metallurgy Industry

Product Description

High Voltage Passive Filtering Device

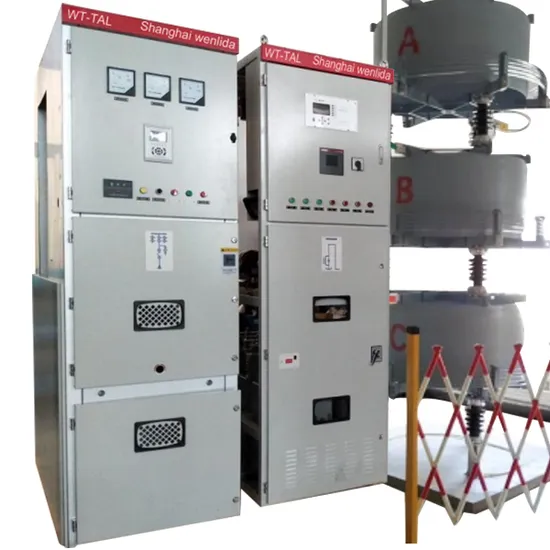

The WT-TAL filter device is based on the principle of capacitive reactance resonance. After fine tuning the LC, the filter can present a low impedance to the high-order harmonic current of a certain frequency, and redistribute the harmonics flowing into the system and the filter. At the same time, it can also transmit capacitive reactive power to the system to adjust network voltage, reduce line loss, and improve the efficiency of power supply and distribution equipment. Improve system power quality.
MODEL DESCRIPTION:
SPECIFICATION SHEET:

System voltage (kv)	Filter compensation capacity (kva)	Filter branch	Parallel cabinet	Size(mm) Width*Height*Depth
0.4	240	5.7	1	1000*1000*2200
0.4	300	5.7.11	1
0.4	350	5.7.11	2
0.69	240	5	1
0.69	320	5.7	1
0.69	360	5.7.11	2

The filter compensation device other than the above scheme can be specially designed
according to the requirements of customers or the actual situation of the system
TECHNICAL FEATURES:
1.It has the function of harmonic filtering, which can filter the 3rd, 5th, 7th, 11th and 13th harmonics;
2.Under the condition of satisfying the reactive power compensation, the power factor can be increased to more than 0.92;
3.The dynamic response speed is fast, and it can be completed within 20ms. It is suitable for large capacity impact load and has wide application range;
4.Dynamic tracking load change, fully automatic and long-term continuous operation.
5.It has the advantages of less investment, high efficiency, simple structure, reliable operation and convenient maintenance.
6.The total absorption rate of typical harmonic current can reach more than 70%, and the harmonic current and harmonic voltage injected into PCC point can meet the national standard limit specified in GB / T14549-93.
7.It overcomes the shortcomings of traditional AC contactor switching mode, without switching inrush current, arc re ignition, and without discharge.
8.It has over-voltage protection, over-current protection, overheat protection and grounding protection, with perfect protection and high reliability coefficient.
TECHNICAL PARAMETER:
1.The results show that the total distortion rate of voltage harmonic at PCC point and the harmonic content of current meet the allowable value of GB / t14549-1993
2.The characteristic frequency harmonic absorption rate is more than 70%
3.Compensated average power factor ≥ 0.92
4.The response time is 15ms and the load changes rapidly
5.With overvoltage, current, overheating, grounding protection
6.Fully automatic, long-term continuous operation USAGE ENVIRONMENT:
1.Ambient temperature-5ºC~+40ºC, relative humidity≤90RH(40ºC±2ºC no frost),
2.The altitude shall not exceed 2000m
3.The voltage fluctuation range shall not exceed ±10% of the rated working voltage
4,No severe vibration and impact, no inflammable and explosive hazard in the environment, no gas to damage insulation and corrode metal, no conductive dust

---
