Flexo CTP Machine Ecoographix FL-600e Flexo CTP

Product Description

Product Description
EcooGraphix Flexo CTP Machine FL-600E

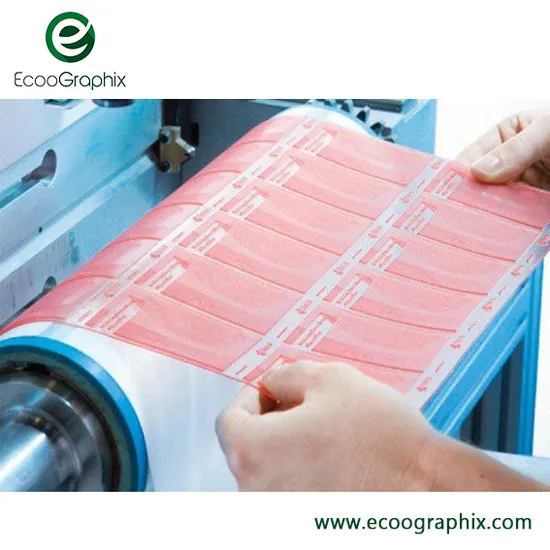

EcooGraphix Flexo CTP machine is used for label, trade mark or package printing.
It can expose the Heat corrosive film, digital relief printing plate (water-wash),
digital flexo plate (water-wash), digital flexo plate (solvent based), or Thermal PS plate and so on.
Specification

Technical Specification - EcooSetter Flexo FL-600E CTP
Model	FL-600E (EM)
Imaging System	16-channel
Output Speed	1.25m2/h
Max. Breadth	26" x 17" / 680mm x 430mm
Plate Thickness	0.7mm - 1.7mm
Laser Power	High power semiconductor laser diode
Plate Type	Digital relief flexo plate (water-wash), digital flexo plate (water - wash), digital flexo plate (solvent - wash), steel based digital plates (water/ alcohol washable) are applied for EM/SM series
Application	Label and trademark
Resolution	4000dpi
Plate Loading	Manual load and unload
Interface	USB 2.0
Focus adjust	Dynamic auto-focus
Device Size	1088x770x1100mm (W*D*H)
Net Weight	400kg
Power	220V/50Hz, 60Hz, mainframe 1.5KW + Vacuum, 1.1KW
Environment	Recommended:18-30ºC, Humidity:10-80%

Similar EcooSetter Flexo CTP Series

Technical Specification - EcooSetter Flexo CTP Series
Model	FL-600E (EM)	FL-600S (SM)	FL-800E	FL-800S
Imaging System	16-channel	32-channel	16-channel	32-channel
Output Speed	1.25m2/h	2.5m2/h	1.25m2/h	2.5m2/h
Max. Breadth	26" x 17" / 680mm x 430mm	26" x 17" / 680mm x 430mm	30" x 25" / 762mm x 635mm	30" x 25" / 762mm x 635mm
Plate Thickness	0.7mm - 1.7mm	0.7mm - 1.7mm	0.7mm - 1.7mm	0.7mm - 1.7mm
Laser Power	High power semiconductor laser diode
Plate Type	Digital relief flexo plate (water-wash), digital flexo plate (water - wash), digital flexo plate (solvent - wash), steel based digital plates (water/ alcohol washable) are applied for EM/SM series
Application	Label and trademark
Resolution	4000dpi
Plate Loading	Manual load and unload
Interface	USB 2.0
Focus adjust	Dynamic auto-focus
Device Size	1088x770x1100mm (W*D*H)	1088x770x1100mm (W*D*H)	1630x1170x965mm (W*D*H)	1630x1170x965mm (W*D*H)
Net Weight	400kg	400kg	400kg	400kg
Power	220V/50Hz, 60Hz, mainframe 1.5KW + Vacuum, 1.1KW
Environment	Recommended:18-30ºC, Humidity:10-80%

Installation Worldwide
Packaging & Shipping
Certifications

FAQ 1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.2. Where is your factory ?Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai. You are warmly welcomed to visit our factory!3. What is your warranty for the CTPs ?Three years' Laser Head and main spare parts for the CTP, one year for the processor.4. What is the Lead Time?Usually 10-30 days, and we will try our best to meet your demands.5. Can you also supply the Workflow and RIP?Yes, we can provide the Workflow Brain New and RIP Compose V9.6. What about the Installation and after-sales technician support?Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.

---
