Small Surface Grinding Machine

Product Description

The surface grinding machine is designed to grind various horizontal and vertical surfaces of the workpieces and end faces of the grinding wheel. It can also grind various contoured workpieces with shaped wheel or craftsmanship apparatus.
Main features:1)Integrated grinding head of high quality, high rigidity and accuracy.
2)Small size, light weight, easy operation & maintenance.
3)Centralized lubrication for oil pump.
Standard configuration:Grinding wheel, grinding wheel adaptor, grinding wheel dresser, pad irons, tools, etc.
Special configuration:Stand, permanent magnetic chuck, precision flat vise.

SPECIFICATIONS	Metric
Longitudinal stroke	340mm
Lateral stroke	170mm
Grinding height	210mm
Area of table	152mm×304mm
Width of T-slot	1-12mm
Cross feed per graduation	0.02mm
Cross feed per round	2.54mm
Vertical feeds per graduation	0.025mm
Vertical feed per round	1.25mm
Roughness	1.6μm
Grinding wheel	180mm×31.75mm×13mm
Power of motor	0.55kw
N. W. / G.W.of machine	210/260kg
N. W. / G.W.of stand	30/54kg
Case dimension of machine(L×W×H)	1100×760×860mm
Case dimension of stand(L×W×H)	770×580×630mm
Package	Veneer box

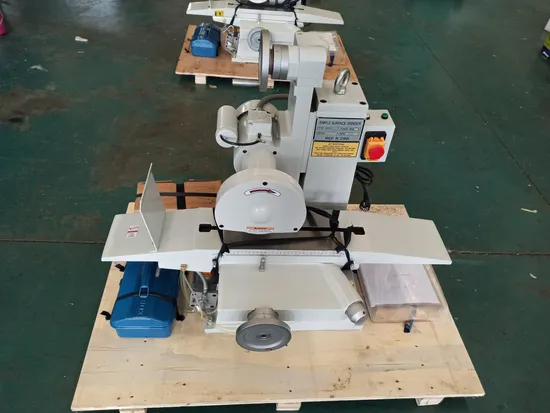

Product details:
Company information:
Shandong Linyi Golden Star Machine Tool Co., Ltd.the original linyi machine tool plant, founded in 1965, is a research and development, production and manufacturing mechatronics CNC machine tool products and characteristics of export products for the main business of state-level high-tech enterprises, with annual production of CNC lathe, vertical machining centers, CNC milling machine, engine lathe, multi-purpose machine, surface grinding machine, etc. The comprehensive production capacity of more than Taiwan. The company has passed THE ISO9001 international quality system certification, and enjoys the right to import and export. It is a patent star enterprise in Shandong Province, with provincial enterprise technology center, provincial one enterprise one technology RESEARCH and development center, municipal engineering technology research center and key laboratory of high-grade CNC machine tool enterprises.

---
