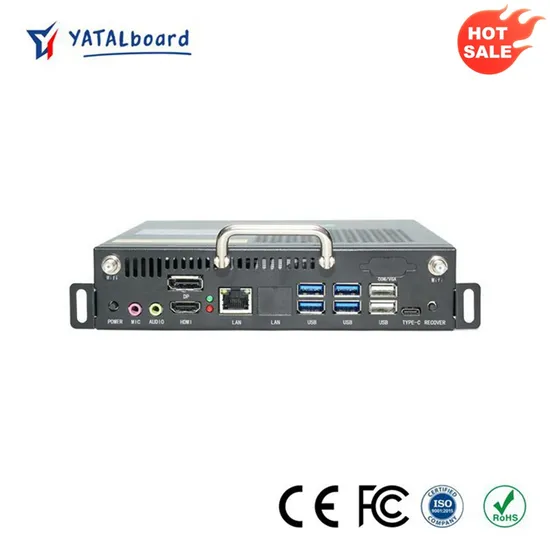

Intel I3/I5/I7/I9 4K60Hz OPS for Electronic Whiteboard for High-Performance Smart Classrooms OPS

Product Description

Product Description

Product Name	OPS
Hardware	Intel i3/i5/i7/i9
Generation	5th gen/6th gen/7th gen/8th gen/9th gen/10th gen/11th gen/12th gen/13th gen
Operating System	Windows 10/10 Pro/11/Linux
Interface	Standard 80-pin
Main Applications	Compatible with All-in-One PC/Media Advertising Machine
Hard Drive	8+128GB/8+256GB/8+512GB/16+512GB etc.

OPS-SOC I5 1135G7
Product features

*	Powered by Intel ® Core™ Tiger Lake I3/I5/I711 generation mobile processors
*	Support 1*260Pin DDR4 SO-DIMM memory slot
*	1 x M.2 slot with MiniPCIE SSD support
*	1 x M.2 slot with M.2 WIFI support
*	Realtek 8111H (default Gigabit)
*	Support JAE 80PIN connection interface
*	TPM2.0 is supported
*	The hardware supports one-click restore of system functions

CPU	CPU	I5-1135G7 2.4GHz- 4.2GHz , 4 cores 8 threads
	Chipset	SOC
	BIOS	AMI BIOS
RAM	DDR4	Support 1*260Pin DDR4 SO-DIMM memory slot (located on the back of PCB) Support 1.2V DDR4 SO-DIMM memory Support MAXIMUM MEMORY 64GB, SUPPORT MEMORY FREQUENCY 2666MHZ
Storage	M.2	1 x M.2 slot with MiniPCIE SSD support NEME protocol and Msata protocol (located on the back of the PCB)
Display	Graphics card	Intel Iris Xe Graphics
	Output	HDMI	I/O port HDMI output support 3840*2160@60Hz
		DP	I/O port DP output support 3840*2160@ 60Hz
		OPS-HDMI	80PIN Socket HDMI output support 3840*2160@ 60Hz
Audio	Audio	ALC897 Support 1*LINE-OUT,1*MIC-IN,80PIN support LINE-OUT+MIC
Internet	LAN	Realtek RTL8111H 10M/100M/1000M Ethernet
	WIFI	1*M.2 2230 for Wifi+BT
SIO	FAN	Support automatic fan adjustment
Other	POWER	Power button
	RECOVER	One key restore button
USB	USB3.0	2*USB 3.0 4*USB 2.0 1 x TYPE-C port (default USB2.0 speed)
Adapter	Input	DC19V/4.74A
Size	A	180*120*30mm
OS	OS	Windows 10/11
Environment	Working temperature: 0-45°C Storage: -40~80°C
	Humidity 10%~95% non-condensing

OPS-SOC I5 12450H
Product features

*	Intel Core Alder Lake i5/i7/12th/13th Gen mobile processors
*	Support 1*260Pin DDR4 SO-DIMM memory slot
*	1 x M.2 slot with MiniPCIE SSD support
*	1 x M.2 slot with M.2 WIFI support
*	The BIOS supports AMI 256Mbit diskless boot
*	Support JAE 80PIN connection interface
*	TPM2.0 is supported
*	The hardware supports one-click restore of system functions

CPU	CPU	i5-12450H 2.0 GHz-4.4 GHz,8 cores and 12 threads
	BIOS	UEFI BIOS
RAM	DDR4	1x SO-DIMM DDR4;MAX 3200 MHz supports up to 64GB
Storage	M.2	1x M.2 2280 interface supports NVME and SATA dual protocol
Display	Graphics card	Intel Iris Xe Graphics
	Output	HDMI	I/O port HDMI output support 3840*2160@60Hz
		DP	I/O port DP output support 3840*2160@ 60Hz
		OPS-HDMI	80PIN Socket HDMI output support 3840*2160@ 60Hz
Audio	Audio	ALC897 Support 1*LINE-OUT,1*MIC-IN,80PIN support LINE-OUT+MIC
Internet	LAN	Realtek RTL8111H 10M/100M/1000M Ethernet
	WIFI	1*M.2 2230 for Wifi+BT
SIO	FAN	Support automatic fan adjustment
Other	POWER	Power button
	RECOVER	One key restore button
USB	USB3.0	2*USB 3.0 4*USB 2.0 1 x TYPE-C port (default USB2.0 speed)
Adapter	Input	DC19V/4.74A
Size	A	180*120*30mm
OS	OS	Windows 10/11, Linux
Environment	Working temperature: 0-45°C Storage: -40~80°C
	Humidity 10%~95% non-condensing
