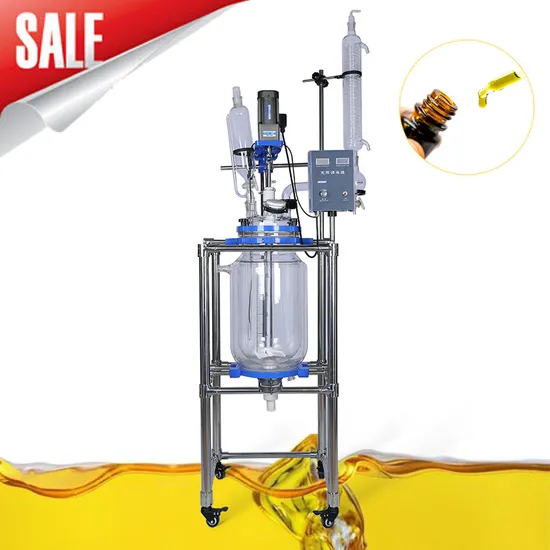

Lab Chemical Double Layer High Pressure Reactor Vessel Price Pilot Plant Jacketed Glass Reactor 20L 50L with Vacuum Filtration Apparatus

Product Description

Lab Chemical Double Layer Glass Reactor Vessel Price Pilot Plant Jacketed Glass Reactor 20L 50L with Vacuum Filtration Apparatus Product Description
Double-layer glass reactor can do a stirring reaction in the inner layer under the condition of a vacuum. The interlayer can make constant temperature for heating or cooling reactions through the heat or cold source(freezing liquid, water, or hot oil). It is widely used in modern refined chemical, biological pharmacy, new material synthesis industry research experiments, etc. OEM is also welcomed. We have rich experiences in OEM.
According to the customer's requirements and standards, we manufacture frequency control speed jacketed glass reactor which has many functions to satisfy kinds of experiments. That is, we innovate to assemble rectification columns and create a jacketed glass reactor production line.
Cash Payment is Available in Los Angeles!
Lab Equipment in USA Warehouse, Canada Warehouse, Spain Warehouse!
No Customs Clearance, Pick up by yourself!
Product Parameters

Model	S-10L	S-20L	S-30L	S-50L	S-100L
Stirring Power(W )	120				180
Stirring Speed(rpm)	0~600(Max. 1300)
Stirring Shaft Diameter(mm)	12				15
Reaction Kettle Capacity(L)	10	20	30	50	100
Power Supply	220V 50/60 Hz
Motor Torque(g/cm)	1000	1200		1500	3000
Note	304 all stainless frame
Explosion-proof	1. The stirring power (W): 180, 250, 370
	2. Power supply: 220V / 50Hz or 110V / 60Hz

Product Features
1)The reactor body is made of high borosilicate glass (GG-17). It has excellent physical and chemical properties, transparent bottle body and visible reaction liquid material..
2)The main body is made of stainless steel frame + aluminium alloy, which is beautiful, strong and corrosion resistant..
3)Stainless steel stirring rod wrapped with tetrafluoro is suitable for stirring with various solvents, pollution-free and corrosion-resistant..
4)Explosion-proof motor mixing, smooth operation, high torque, no spark, long service life.
5)PTFE module + mechanical seal, ceramic bearing, proprietary technology, can guarantee good vacuum degree and long service life.
6)The explosion-proof speed governor of this product has dual digital display of speed and temperature. Speed can be set by adjusting speed and twisting, which is intuitive and convenient;
7)It is also equipped with a temperature measuring probe (PT100) for displaying the temperature in the kettle. .
8)The whole structure is compact and reasonable. It has universal wheel with brake. It can move as a whole and is easy to operate.
9)No dead angle glass oblique discharge valve, can effectively reduce the stirring dead angle, easy discharge.
10)This product has the function of vacuum display. It can choose the best working vacuum for high boiling point materials.

Company Profile
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low-temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt, etc. countries and our customers have been fully affirmation.
Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue: US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America
Packaging & Shipping

Packaging:
-After use cartons inside, outside with wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEx and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.

Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to an airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.

Pre-sale Service:
--24 Hours online service for your consultation.
--Help choose right model, and a series of services, people, and advice.
--Give you the best offer.
--Provide discount for many sets order.
--Do customer's request.
--Choose payment term you convenient.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
After-sale service:
--1 year warranty service and all life maintenance.
--Technical Engineers are available for overseas training.
--Remote control technical consult.
--Free installation DVD.
--Maintenance plan.
FAQ
1. What's the minimum order quantity?
One set at present.
2. What kind of payment terms do you accept?
Normally we accept TT, Paypal, Western Union, and L/C. The exact term will be discussed during the deal.
3. How will you deliver these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will we package glass equipment be?
We package these glass equipment in good and Nonfumigation standard wooden cases.
5. Can you accept OEM terms?
Sure.
6. How to choose suitable equipment?
You tell us your requirements (For example capacity, temperature range, pressure, etc ), we will recommend you the best suitable equipment.
We are confident in providing professional products and service you want,
We guarantee that your inquiry will be received our immediate attention.
