US$12,000.00-13,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Function
Engraving Router
Application Material
Glass, Cement Brick, Granite, Marble
Engraving Head Speed Adjustability
Wide Adjustable Range
Application
Glass, Decoration, Advertising, Stela & Gravestone, Stone Industry
Spindle Number
Double-Spindle
X,Y,Z Traveling Area
2000*3000*300mm
Working Voltage
380V/50Hz
Max Spindle Speed
24000RM/Min
Transport Package
Plastic Film Packing
Specification
3200*4300*2300mm
Production Capacity
50pieces/Month
Packaging & Delivery
Package Size
320.00cm * 370.00cm * 210.00cm
Package Gross Weight
3300.000kg
Product Description
Product Description

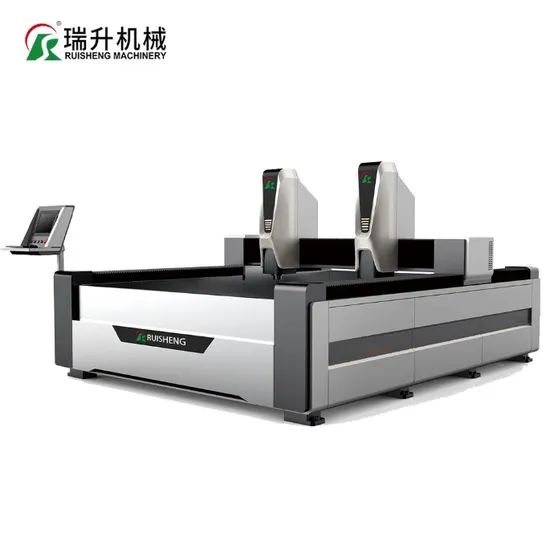

| | 2030T-2D Double-Spindle |
| Processing size | 2000*3000*300mm |
| Dimension of external form | 3200*4300*2300mm |
| Processing material size | Double:950*3000mm single:1500*3000mm |
| Weight | 3.0T |
| machine tool | |
| Beam | Thickened bridge steel |
| Rail | Y. Z-axis 25 rail(Y-axis dual track),X-axis 30 rail |
| Spindle power | 7.5KW*2 |
| Spindle speed | 24000rm/min |
| Frequency converter | 7.5KW*2 |
| Voltage | 380V/50HZ |
| Instruct | G-code/HPGL/ENG/MMG/nc/u00 |
| Motion positioning accuracy | 0.02 mm |
| Repeatability | 0.01 mm |
Big power spindle, greating cutting indensity, high efficiency, lowe noise.
The special designed Z-axis structure, increasing the stone relief precision effectively, making the ball screw
broken of Z-axis failure rate to the lowest.
Using the high precision rack and pinion transmission, higher precision, fast speed and powerful.
Gantry moving, more fast, stable, uniformity, no shaking for the whole machine.
Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time,
getting the more better engraving effect.
Continuing working after the break point/power failure, lower the rejection rate.
Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software,
2D/3D processing, more convenient to using.
>>
