Diamond Wet Core Drill Bits for Drilling Reinforced Concrete with Arix Diamond Segments

US$20.00-570.00 10 Pieces (MOQ)

Basic Info.

Model NO.
Size optional
Certification
Europe Standard En 13236: 2001
Manufacturing Arts
Laser Welded
Segment Shape
Common or Customized
Equipment
Hand Tool or Cutting Machine
Application
for Concrete and Construction
Material
Diamond and Metal
Advantage
Fast Drilling, Long Life
Segment Size
24*3.5*10;
Color
Customized
Diameter
2" to 20"
Connection
1 1/4-7unc, 1/2bsp, 5/8-11′′, M14
Transport Package
Common Packing or Customized Packing
Specification
Europe standard EN 13236: 2001
Trademark
OEM and ODM
Origin
China
HS Code
82071910
Production Capacity
30000PCS/Month

Product Description

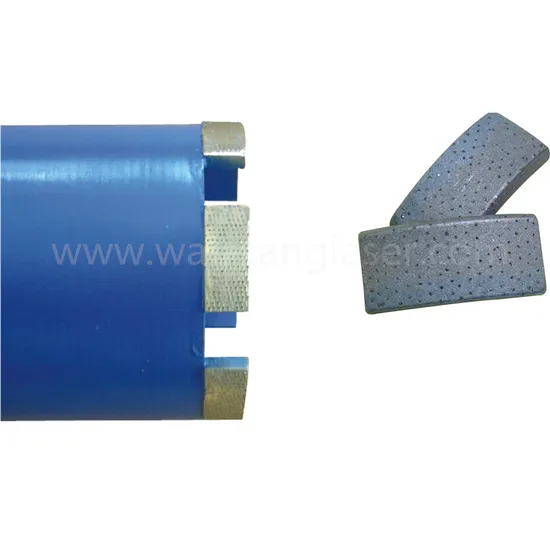

Diamond Wet Core Drill Bits for Drilling Reinforced Concrete With Arix Diamond Segments
Manufacturer technology: Laser welded.
Application: Wet drilling concrete, reinforced concrete, granite, masonry with superior efficiency.
Features: Segments with even distribution diamond grits Precisely layout in three-dimensional patterns Very good sharpness achieve fast drilling, especially very fast when drilling with rebar meanwhile. Provide 20% higher drilling performance in the widest range of heavily reinforced concrete, particularly in difficult operating conditions. Drilling stable with small wobbling. 16" and 18" drilling depth standard Superior cutting speed and long life in a variety of applications. Laser welded up to 20". Detailed Images:
Specification:
Core Drills for Wet Use
Diameter Segments size Thread Drilling Depth Quality Grade Cutting materials
42mm 22*3.5*10 1- 1/4" UNC
1/2" BSP
M14
M16
450mm Pro. Reinforced concrete
52mm 24*3.5*10 450mm Pro. Reinforced concrete
62mm 24*3.5*10 450mm Pro. Reinforced concrete
72mm 24*3.5*10 450mm Pro. Reinforced concrete
82mm 24*3.5*10 450mm Pro. Reinforced concrete
92mm 24*3.5*10 450mm Pro. Reinforced concrete
102mm 24*3.5*10 450mm Pro. Reinforced concrete
112mm 24*3.5*10 450mm Pro. Reinforced concrete
122mm 24*3.5*10 450mm Pro. Reinforced concrete
127mm 24*3.5*10 450mm Pro. Reinforced concrete
132mm 24*3.5*10 450mm Pro. Reinforced concrete
142mm 24*4.0*10 450mm Pro. Reinforced concrete
152mm 24*4.0*10 450mm Pro. Reinforced concrete
162mm 24*4.0*10 450mm Pro. Reinforced concrete
172mm 24*4.0*10 450mm Pro. Reinforced concrete
182mm 24*4.0*10 450mm Pro. Reinforced concrete
200mm 24*4.0*10 450mm Pro. Reinforced concrete
225mm 24*4.5*10 450mm Pro. Reinforced concrete
250mm 24*4.5*10 450mm Pro. Reinforced concrete
300mm 24*5.2*10 450mm Pro. Reinforced concrete
350mm 24*5.2*10 450mm Pro. Reinforced concrete
400mm 24*5.2*10 450mm Pro. Reinforced concrete
450mm 24*5.2*10 450mm Pro. Reinforced concrete
500mm 24*5.2*10 450mm Pro. Reinforced concrete
550mm 24*5.2*10 450mm Pro. Reinforced concrete
600mm 24*5.2*10 450mm Pro. Reinforced concrete

Sales Distribution Map:
Factory Show:
Company Information:
WUHAN WAN BANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in Wuhan Wanbang Laser Diamond Tools Co., Ltd. is a dynamic company driven by a team of experienced doctors and masters specialized in powder metallurgy and laser welding technology. Established in 1999, we are a leading manufacturer of professional diamond tools.
Our wide range of diamond tools have various applications in architecture, stone processing, decoration, and highway projects. With our expertise and dedication, we produce and develop high-quality diamond tools that meet the needs of different industries.
As an ISO9001:2000 certified company, we have a strict quality control system in place. Our products are exported to the USA, Germany, UK, and many other countries, and have earned a great reputation in the mainstream market.
FAQ 1. Are you a factory or a trading company? We are a professional manufacturer of diamond tools with over 20 years' experience. 2. Do you accept OEM brand? Yes, OEM and ODM are all available. Products with different models or sizes can be manufactured as per your request. Besides, we can provide label printing service. 3. Are samples available ? Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, 4. What's your payment term? Usually 30%-100% T/T in advance.Balanced paid before shipment 5. How could you deal with quality problems? Few quality problems occurred in the past 10+ years' foreign trade. If it occurs, all quality failure can be fully compensated. 6. What's your deliver way? It depends on the weight to choose corresponding way for shipping. Normally sample orders are shipped by express,by air,bulk orders are shipped by sea 7.What's your delivery time? Usual delivery time is 7-15 days after receiving the advance payment; For the customized product, 30-45 days after receiving the advance payment.
