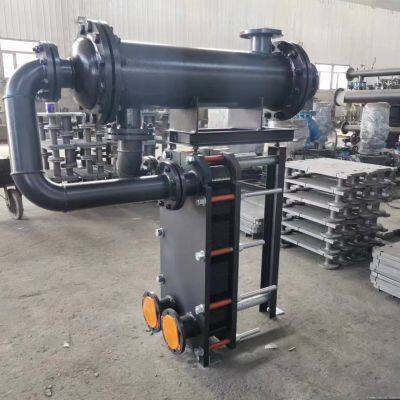

YDA High - Temperature Steam - Water Heat Exchanger Product Introduction
1. Company Background
YDA, based in Dalian, China, is a distinguished enterprise with a focus on heat - exchange technology. Since its establishment, YDA has been committed to the research, development, production, and sales of high - performance heat - exchange equipment. Leveraging advanced technologies and a professional R & D team, YDA has successfully developed a series of high - temperature steam - water heat exchangers that meet the diverse needs of various industries.
2. Product Overview
YDA's high - temperature steam - water heat exchanger is a key equipment for efficient heat transfer between steam and water. It is designed to handle high - temperature and high - pressure working conditions, ensuring stable and reliable heat - exchange performance.
3. Structural Features
Tube - Shell Structure: The heat exchanger adopts a tube - shell structure, with a tube bundle installed inside the shell. The steam flows through the shell - side, while the water passes through the tube - side. This structure allows for a large heat - transfer area and effective heat exchange.
High - Quality Materials: The tubes and shell are made of high - quality materials with excellent heat - resistance, corrosion - resistance, and pressure - bearing capacity. For example, stainless - steel materials are often used for the tubes to ensure long - term operation in high - temperature and corrosive environments.
Sealing Design: A reliable sealing system is applied to prevent steam and water leakage. High - performance gaskets and advanced sealing techniques are used to ensure the tightness of the connection between components, maintaining the normal operation of the heat exchanger.
4. Working Principle
Heat Transfer Process: When high - temperature steam enters the shell - side of the heat exchanger, it releases heat to the tube - side water through the tube walls. The water absorbs the heat and increases its temperature, while the steam condenses into water after giving off heat. This process realizes the transfer of heat from steam to water.
Enhanced Heat - Transfer Technology: YDA's heat exchanger is equipped with advanced heat - transfer enhancement technologies. For instance, the inner surface of the tubes may be designed with special structures such as fins or grooves to increase the turbulence of the water flow and enhance the heat - transfer coefficient, thereby improving the overall heat - exchange efficiency.
5. Product Advantages
High - Efficiency Heat Exchange: With a large heat - transfer area and advanced heat - transfer enhancement technologies, YDA's high - temperature steam - water heat exchanger can achieve high - efficiency heat exchange, quickly heating the water to the required temperature and reducing energy consumption.
Reliable Performance: The use of high - quality materials and strict manufacturing processes ensures the reliable performance of the heat exchanger. It can withstand high - temperature and high - pressure working conditions for a long time, reducing the frequency of maintenance and replacement, and improving the stability of the entire system.
Flexible Adaptability: The product can be customized according to different working conditions and user requirements. YDA's professional technical team can adjust the structure, material, and size of the heat exchanger to meet the specific needs of various industries, such as power plants, chemical plants, and heating systems.
Energy - Saving and Environmental - Friendly: By improving the heat - exchange efficiency, the heat exchanger can make full use of the heat energy of steam, reducing steam waste and energy consumption. At the same time, it helps to reduce the emission of greenhouse gases, which is in line with the requirements of energy - saving and environmental - protection.
6. Application Fields
Power Industry: Used in power plants for steam - water heat exchange in the process of steam turbine power generation, pre - heating of boiler feed water, and other applications.
Chemical Industry: Applied in chemical production processes, such as heating and cooling of reaction media, heat recovery in distillation towers, and other scenarios.
District Heating: Plays a crucial role in district heating systems, converting high - temperature steam from heat sources into hot water for heating residential and commercial buildings.
Industrial Manufacturing: Used in various industrial manufacturing processes that require heat transfer between steam and water, such as food processing, paper - making, and textile industries.
7. Technical Parameters
Operating Pressure: [Specify the maximum and minimum operating pressures, e.g., 0.5 - 5.0 MPa]
Operating Temperature: [Specify the maximum and minimum operating temperatures for steam and water, e.g., steam temperature range: 150 - 350 °C; water temperature range: 50 - 150 °C]
Heat - Transfer Area: [Available heat - transfer area range, e.g., 5 - 200 m²]
Flow Rate: [Specify the maximum flow rates of steam and water, e.g., steam flow rate: 1 - 50 t/h; water flow rate: 5 - 200 m³/h]
8. Customer Service
YDA provides comprehensive customer service. Before - sales, professional technical staff can communicate with customers in detail, understand their needs, and provide customized product solutions. During the sales process, YDA ensures fast delivery and high - quality product installation. After - sales, YDA offers a long - term warranty service, regular to understand the operation of the product, and timely response to any problems reported by customers to ensure the normal operation of the heat exchanger.
>>
