1. Manufacturing Technique

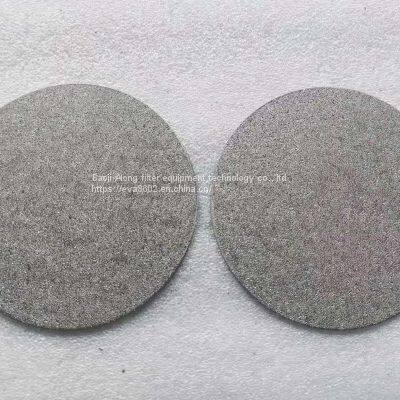

Titanium sintered porous material is a kind of porous material with high quality spherical and high purity titanium powder as raw material and it is made rigid by forming and sintering at high temperature.
Feature: the material contains a large number of connected or semi-connected pores, the pore structure is composed of regular and irregular powder particles, the size and distribution of pores and the size of porosity can be adjusted according to the powder particle size combination and preparation process to meet the actual needs of customers.
2. Specification of titanium sintered porous materials
| Material | Filter
Rating
| Porosity | working
pressure
| Operating temperature | shape | Penetrabiltity | Specific surface area |
titanium
powder | 0.5um-70um | 30-45% | 2.0MPa | 300℃ | Round Disc,Sheet,
Tube,Round Bar,cap.
| 3-800M³/M²hKPa | 10-40cm²/cm³ |
| Production | (Diameter)Length | (Diameter)Width | Thickness | Customized |
| Sintered porous round discs | φ5-φ400mm | φ5-φ400mm | 1-20mm | Yes |
| Sintered porous sheets | 1-600mm | 5-400mm | 1-20mm | Yes |
| Sintered porous tubes | 100-1200mm | φ20-φ200mm | 1-10mm | Yes |
| Sintered porous cartridge | 100-1200mm | φ20-φ200mm | 1-10mm | Yes
|
3. Properties of titanium sintered porous materials:
Pore diameter uniformity, pore stability, high separation efficiency.
High porosity, low filtration resistance and high permeability.
Good chemical stability, acid and alkali corrosion resistance, oxidation resistance.
Morphological stability, no particle shedding, comply with food hygiene and pharmaceutical GMP requirements.
Good mechanical properties, low differential pressure, large flow.
Strong anti-microbial ability, does not interact with microorganisms.
Online regeneration, easy cleaning, long service life.
Excellent biocompatibility, can be widely used in biological, food, pharmaceutical, medical industry.
Excellent electromagnetic shielding performance.
Good damping and shock resistance.
4. Titanium sintered porous materials are allowed to use in the environment
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen, liquid nitrogen, hydrogen sulfide, acetylene, hydrogen, carbon dioxide gas, water vapor etc.
5. Method for cleaning titanium sintered porous materials:
The decarbonization filter elements in the pharmaceutical and chemical industries are mainly backblown and backwashed, and the ultrasonic cleaning is the best.
The filter elements of water industry are mainly rinsed with 5% concentration of nitric acid.
According to the chemical properties of the filtered impurities, the filter elements of the original liquid shall be respectively soaked in pickling (5% nitric acid) or alkaline washing (3-5% sodium hydroxide) and then washed with ultrasonic cleaning.
