Product Description
Product Description

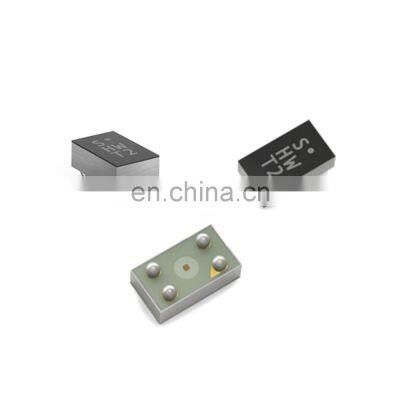

Digital Humidity Sensor SHTW2 (WLCSP) Product PicturesProduct DescriptionDigital Humidity Sensor SHTW2 (WLCSP)Simplicity Meets Proven PerformanceThe SHTW2 is Sensirion's 2nd generation WLCSP (wafer-level chip-scale package) humidity sensor, offering a complete digital humidity and temperature sensor system in a package so tiny that it fits into virtually any application. The SHTW2 comes in a flip chip package, which is an established technology and represents one of the simplest and smallest possible ways of packaging for a semiconductor chip. With a footprint of 1.3 x 0.7 x 0.5 mm3 the SHTW2 is only one-seventh of the size of a comparable DFN humidity sensor, which opens up a new category of ultra-small humidity sensors and enables countless new opportunities for the Internet of Things, wearable, and mobile markets.The SHTW2 is based on Sensirion’s CMOSens® Technology, which offers a complete sensor system on a single chip, consisting of a capacitive humidity sensor, a band-gap temperature sensor, analog and digital signal processing, A/D converter, calibration data memory, and a digital communication interface supporting I2C fast mode.The humidity sensor covers a humidity measurement range of 0 to 100 %RH and a temperature measurement range of –30°C to 100°C with a typical accuracy of ±3 % RH and ±0.4 °C. The operating voltage of 1.8 V and the low power consumption make the SHTW2 humidity sensor suitable for wearable applications running on the tightest power budgets. With the industry-proven quality and reliability of Sensirion’s humidity and temperature sensors and constant accuracy over a large measurement range, the SHTW2 humidity sensor offers an unprecedented price-performance ratio. Tape and reel packaging together with its suitability for standard SMD assembly processes make the SHTW2 predestined for high-volume applications.FeaturesInterface I²CSupply voltage 1.8 VPower consumption 2µW (at 1 reading per second in low power mode)Measuring range (RH) 0 - 100 % relative humidityMeasuring range (T) -30 to +100°C (-22 to +212°F)Response time (RH) 8s (tau63%)Package type Wafer-Level-Chip-Scale-Package (WLCSP)Accuracy Limits for Relative Humidity and TemperatureRelated ProductsRelated 2G 3G 4G GPS ModulesSIERRA MC Series-3G/4G ModulesMC7354 MC7350 MC7304 MC7455 MC7430 HL7588 SIERRA EM Series-3G/4G ModulesEM7305 EM7355 EM7330 EM7430 EM7455 EM7565 SIERRA HL Series-3G/4G ModulesHL7618 HL7648 HL7650 HL7688 HL7690 HL7692 HL7518 HL7528 HL7538 HL7539 HL7548 HL7549 HL7588 HL8518 HL8528 HL8529 HL8548 HL8549 HL6528 SIERRA WP Series-3G/4G ModulesWP7502 WP7504 WP7504-1 WP8548 WP7601 WP7601-1 WP7603 WP7603-1 WP7607 WP7608 WP7607-1 WP7608-1 WP7609 WP7700 WP7702 SIERRA GPRS ModulesSL6087 Q2686RD Q2687RD WISMO228 WISMO218 SIMCOM 4G ModulesSIM7000E SIM7000A SIM7000C SIM7100E SIM7100A SIM7100C SIM7500E SIM7500A SIM7600E SIM7100CE SIM7500CE SIM7600CE SIM7600E-H SIM8909 SIM8950 SIMCOM 3G ModulesSIM5300EA SIM5300E SIM5310 SIM5360E SIM5360A SIM5360J SIM5320E SIM5320A SIM5320J SIM5216E SIM5216A SIM5216J SIM6320C SIMCOM MTK GNSS/GPS/GLONASS/BEIDOU ModulesSIM33EAU SIM33ELA SIM39EA SIM28ML SIM28M SIM68E SIM68V SIM68R SIM68M SIM68VB SIM68MB SIMCOM GSM/GPRS ModulesSIM800 SIM800C SIM800A SIM800F SIM800H SIM800L Related Product Company Information Our Main Product Categories are as below: *Build-in GSM /GPS Antenna * External GSM /GPS/ DAB Antenna- GPS Dielectric Ceramic Patch Antenna - GPS Antenna- GSM / GPS PCB Antenna - 2G, 3G, 4G, 2.4G, LoRa, 433MHz Antenna- GSM / GPS Flexible PCB (FPC) Antenna - DAB Antenna for Car - GSM / GPS LDS Antenna - TV Antenna * GSM+GPS/GLONASS/BEIDOU Combo Antenna * 2G/3G/4G/GPS/GNSS Module- GSM+GPS Antenna - 2G, 3G, 4G Module- GSM+GLONASS Antenna - GNSS (GPS / GLONASS / BEIDOU) Module- GSM+Beidou Antenna - GSM/GPRS+GPS Combo Module- GSM+GNSS Antenna * Terminal Products * PCBA Accessories- ODB GPS Tracker - SIM Card Holder - GSM GPRS Modem/3G Modem/4G Modem - RF Coaxial Cable RG74,RG316,RF1.13,ect- Modem Pool - Module Connectors 60 Pin/ 70 Pin/ 80 Pin- GSM Spy - SMA,SMB,IPEX,MCX,MMCX, N-Type, - GSM/3G/4G Module Development Board FAKRA,BNC,TNC,NEC,FME,RCA Connectors Welcome to customize your personalized wireless modules and antennas for your projects here.
>>
