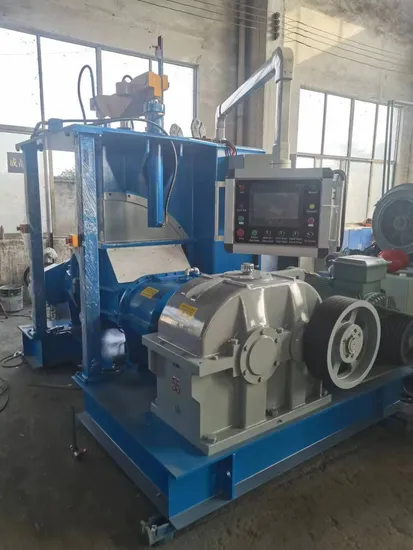

Intensive Rubber Dispersion Kneader

Product Description

Product Description 1. This hydraulic dispersion kneader machine has less noise than pneumatic dispersion kneader.
2. The pressure of the hydraulic dispersion kneader is more balanced and stable working compared with the pneumatic type dispersion kneader,
which can effectively improve the dispersion effect of various mixture materials and enhance the quality of the rubber&plastic compound.
3. Hydraulic dispersion kneader is more powerful and well-distributed,works more efficiently, greatly improve productivity.
4.Hydraulic pressure ram, pressure on the compound is more stable compared with the pneumatic ram, hydraulic ram type makes the mixing more efficiently, it can save around 20%~30% mixing time per batch compared with the pneumatic ram kneader. So at the same time, it can also save 20%~30% electric power consumption cost, improve the production efficiency around 20%~30% higher.
Our hydraulic structure adopts double cylinders design, making it work more reliable and stable.
Product Parameters

Model		X(S)N-20-H	X(S)N-35-H	X(S)N-55-H	X(S)N-75-H	X(S)N-110-H	X(S)N-150-H
Effective Mixing capacity	L	20	35	55	75	110	150
Main power	KW	55	75	90	132	200	250
Brake Motor	KW	3	3	4	4	5.5	5.5
Tilting Angle	ºC	140	140	140	140	140	140
Hydraulic pump power	KW	5.5	5.5	7.5	7.5	7.5	7.5
Hydraulic pressure	Mpa	3~6	3~6	3~6	3~6	3~6	3~6
Cooling Water	Mpa	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Heating Steam	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Electric Heater	KW	9	12	15	18	24	28
Machine Weight	KG	5800	7500	8800	11800	16500	22000
Overall Dimension	CM	260x160 x270	320x185 x280	350x220 X290	380x230 X330	440x290 X385	470x300 X415

Exhibition
Packaging & Shipping The rubber hydraulic kneader machines are packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.

Installation Instructions We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.

---
