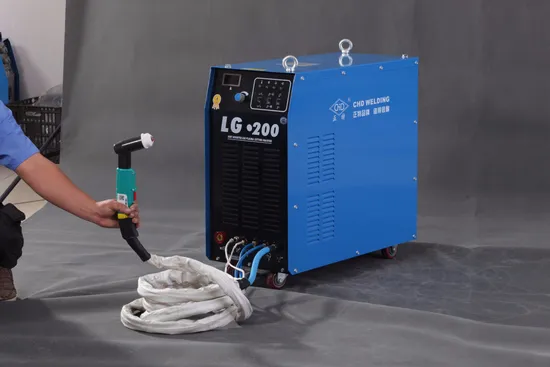

Inverter Air Plasma Cutter for CNC Cutting Machine (LG-200)

Product Description

IGBT INVERTER AIR PLASMA CUTTING POWER SUPPLY
Main Features:
1, This plasma cutting machine is specially work with CNC machinery and robot cutting, the machine is small volume, light weight which is easy to install on the machinery;
2, Good HF arc strike technology, the arc strike controller is separate from the power source, which reduces the HF interruption to the CNC control system;
3, The gas control is separate with the power source: with shorter gas circuit, more stable gas pressure and cutting quality;
4, High duty cycle designing which is suitable for heavy industry use;
5, Cutting current up slope technology to reduce the wearing parts consumption;
6, Accurate cutting current preset, step-less control;
7, With gas pressure checking and indication function;
8, With gas checking function which is easy to adjust the gas pressure;
9, With overload, lack voltage, over voltage and lack phase protection;
10, LG-100/200 with constant arc strike function, which suitable for plate cutting.
Product Application
1, It is widely used for carbon steel, alloy steel, ferrous metal cutting;
2, It is widely used in metal cutting industries like advertisement, pressure vessel, water and electric power, chemical, aerospace, automotive, constructions and parts fabrication.

Model	LG-100	LG-100D	LG-130	LG-200	LG-400
Rated input power, v/hz	3-380±15%, 50/60
Rated input capacity, KVA	14.5		20	35	94
Rated output voltage,V	120		132	160	200
Duty cycle, %	100 (40ºC)
Open-load voltage, V	280		290	320	380
Output current range, A	30-100		30-130	30-200	30-400
ARC voltage output signal scale	1:1
Torch gas pressure, Mpa	0.4-0.5		0.4-0.6		0.45-0.6
Max cutting thickness, mm	40		45	65	90
Optimal cutting thickness, mm	0.3-22		0.3-25	1-45	1-55
Arc striking method	High frequency	Low frequency	High frequency
Degree of protection provided by enclosure	IP21
Insulation grade	F
Type of cooling	Water cooling		Air cooling/water cooling	Water cooling
Power supply dimensions, mm	340*740*860		400*810*720	380*870*800	500*730*1040
Overall Dimension, mm	400*780*720		450*810*750	430*890*820	630*960*1400
G.W.(KG)	53		75	82/109(with Accessories)	170/197(with Accessories)

Plasma Cutting Thickness(with Domestic P80,YY Torch)

Thick material, mm	LG-100		LG-130		LG-200		LG-400
	handle	machine	handle	machine	handle	machine	handle	machine
C.S.	0.3-30	1-22	0.3-25	1-25	1-65	1-45	1-80	1-50
S.S.	0.3-300	1-22	0.3-25	1-25	1-65	1-45	1-80	1-50
Aluminum	0.3-25	1-16	0.3-26	1-19	1-48	1-33	1-60	1-38
Red copper	0.3-10	1-6	0.3-9	1-7	1-16	1-11	1-20	1-12

Standard componets:
Cutting torch - 1 set (5m), Grounding cable - 1 set (2m), Air filter - 1 piece.
Extra Consumables (10 electrode, 10 tips,10 sheild cover)
Options:
Straight handle torch, gouging cutting torch, cooling water tank, CNC cutting machine, robot
Company Profile:
Shanghai CHD, integrated with R&D, Pruduction, Sales and Service, Certificated by ISO9001, SGS, CE, is one of the largest manufactures of welding machine, cutting machine and beveling machine in China.
The company was established in 1989, headquartered in Shanghai, with two production bases covering 53000 square meters and 5 branch companies thoughout China.
The product covers a wide and ever-growing range, including welding equipment, cutting equipment, drying equipment and auxiliary tools, etc., which are widely used in petroleum, chemical, metallurgy, construction, motorcycle, aerospace, shipbuilding, etc. CHD products have been highly recognized among more than 50 countries, like USA, German, Russia, Japan, Brazil, India, Malaysia, etc. In 2010, CHD started to cooperate with Koike Engineering-the world's largest manufacturer fo steel plate cutting equipment. Moreover, the sales volume always keeps a leading position in the industry. CHD deserves your Trust!

---
