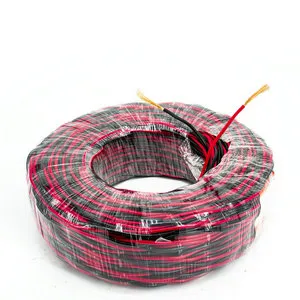

0.75mm 1.0mm 1.5mm 2.5mm Twisted Pair Cable for Fire Alarm

US$0.10-5.00 1,000 Meters (MOQ)

Basic Info.

Model NO.
0.75mm 1.0mm 1.5mm 2.5mm
Type
Smoke Alarm
Application
Home, Communication Electronic Products, Industry, Special Equipment, Traffic
Usage
Door, Personal, Smoke, Fire
Certification
DOT, E-MARK, CE, ISO, FCC, RoHS, CCC, GS
Color
Red Black Yellow White
Shipment
in Container by Sea
Delivery
15 Work Days
OEM
Available
Usage Life
50 Years
Warranty
2 Years
Transport Package
Reel Drum Roll Pallet
Specification
0.3mm~300mm
Trademark
Qingxin
Origin
China
HS Code
8544492100
Production Capacity
10000 Km Per Month

Product Description

Product DescriptionThis cable structure include conductor and insulation.
Conductor is usually made by copper or tinned copper, insulation is usually made by high quality flexible PVC.
According to special material and special requirements, RVS wire include NH-RVS, ZR-RVS, and normal RVS.
NH-RVS means fire resistance electric wire, compare with normal wire, it adds a layer of mica tape inside the PVC insulated, hence it brings the advantage of fire-resistance.
ZR-RVS mean flame retardant electric wire. Compare with normal RVS wire, it change the PVC insulation to flame retardant material PVC, so that it will not burn in fire, safe to use.
Normal RVS means working temperature is -10ºC-70ºC, use the normal flexible PVC material. Since the cheap price compare with NH-RVS and ZR-RVS, engineers use this kind of wire more often.
Detailed Photos
Product Parameters
Model No.ConductorInsualtionJacket
Cores × Nom. AreaMax. Resistance at 20°CThicknessMin. Resistance at 70°CThicknessMin. Dia.Max.
mm²MΩ/kmmmMΩ/kmmmmmmm
2×0.752×0.75260.60.0110.867.6
2×1.02×1.019.50.60.010.86.48
2×1.52×1.513.30.70.010.87.49
2×2.52×2.57.980.80.00918.911
3×0.753×0.75260.60.0110.86.48
3×1.03×1.019.50.60.010.86.88.4
3×1.53×1.513.30.70.010.989.8
3×2.53×2.57.980.80.00919.612
4×0.754×0.75260.60.0110.86.88.6
4×1.04×1.019.50.60.010.97.69.4
4×1.54×1.513.30.70.011911
4×2.54×2.57.980.80.0091.110.513
5×0.755×0.75260.60.0110.97.49.6
5×1.05×1.019.50.60.010.98.310
5×1.55×1.513.30.70.011.11012
5×2.55×2.57.980.80.0091.211.514
Certifications
Packaging & Shipping
Company Profile *Specifications
Dadi Energy Co.,LTD Located in Qingdao China, covers an area over 100,000 square meters and has an assets more than 200 millions.
We have advanced production equipment and high quality production management teams. Our electric wire cable are widely used on domestic and foreign markets with good reputations.
We have a full range of products, including Low and medium voltage from 300v to 220KV electric wires, power cables, communication cables, photovoltaic solar cables etc. These products comply to IEC DIN BS ASTM JIS UL and other standards.
Our company have passed ISO9001 quality management system, ISO14001 environmental management system, ISO45001 occupation health safety management system.
FAQ
Q1: How can I get the Quotation of the Cable products?
Pls send your demand or specification to us or just E-mail our trade Manager, We'll reply to you within 2 hours in the Working days.
Q2: How could I get the Cable Sample?
We are glad to offer you samples if we have it in stock.
The sample fee can be returned to you on your first time mass order (deduct from the total amount).
If you have a courier account or forwarder in China, we can send it your courier to collect samples.
Q3: I didn't find my needed Electrical Cable in this page. Do you provide OEM Project Service?
Surely , our factory could manufacturing more than10000 models, OEM & ODM order is warmly welcome and we can put your brand name (logo) on these products.
Q4: How long is the Delivery Time?
For Sample: 1-3 working days ;
For small orders: 3-10 working days;
For mass orders: 10-18 working days.
It is better to communicate with us if you are interested to place an order. It depends on your order quantity.
Q5: What are your payment terms?
Our payment term is usually 30% deposit in advanced, the balance T/T Before shipping.
