Bed Type Horizontal Manual Universal Milling Machine for Metal (fresadora)

Product Description

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Product Description

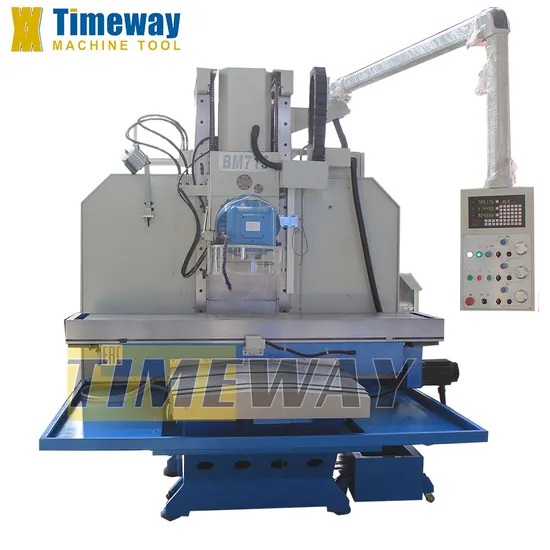

Bed Type Milling Machine
* Universal milling head with an ISO50 spindle taper;
* Universal head swivels to horizontal position;
* Geared drive spindle speeds 12 steps 35-1345rpm;
* 7.5kW/10hp main spindle motor;
* Servo controlled feed motors on X, Y, Z-axis ensures response, accuracy and consistent feed;
* X, Y and Z-Axis servo controlled power-feed with rapid;
* Ball screw X, Y-axis providing smooth and accurate operation;
* Rapid feed servo controlled on X, Y, Z-Axis;
* Hardened and ground worktable & slideways;
* Square construction slides for X, Z-axis to maximize rigidity;
* Large 2100 x 500mm slotted work table;
* High grade casting for additional strength and minimal deformation;
* Quality electrics & overload protection in an easy access enclosure;
* High/neutral and low gear selection lever to maximize torque;
* Micro switch on the manual knee handle for additional operator safety;
* Metric dial graduations of 0.02mm for X, Y, Z-axis;
* Table trays each end of work table;
* Clutch hand wheels X, Y-axis;
* Coolant system and halogen light included;
* Automatic oil lubrication pump and reservoir;
* Tool box and operations manual

SPECIFICATION	UNIT	BM715
Table size	mm	500x2100
Longitudinal travel(X)	mm	1500
Cross travel(Y)	mm	650
T slot(No. /width/distance)	mm	4/20/100
Spindle taper	-	ISO50
Verical spindle speed	rpm	6-1500(2steps)
Distance from horizontal spindle axis to table	mm	8-660
Distance from vertical spindle axis to column	mm	610
Distance from vertical spindle nose to table	mm	0-650
X/Y-axis feed speed	mm/min	2.5-3000
X/Y-axis rapid feed speed	mm/min	6000
Z-axis feed speed	mm/min	2.5-2500
Z-axis rapid feed speed	mm/min	3000
Main motor power	kw	11
X/Y/Z-axis feed motor torque	NM	18/23/18
Coolant pump power	kw	0.09
Machine dimensions(LxWxH)	mm	3220x2420x2800
Machine weight	kg	7300

STANDARD ACCESSORIES:
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
