Product Details
Product Description
Product Description

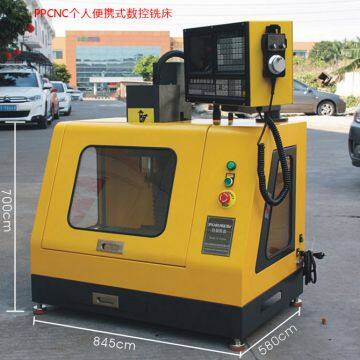

Mini desktop professional manufacturer of CNC router machine
Difficult to think of the problem, which cannot handle this car. The only limitation to the possibilities in front of large and heavy brethren: Stage size and speed of processing, and in the aggregate: functionality, compactness and price - out of competition.
. The machine can easily be placed in a small workshop or home. Will apply for relief 3d- treatment (three-dimensional objects , reliefs, souvenirs, cliche) , engraving (personalization items , creating labels , jewelry , engraving PCBs ) , all types ofcutting (letters and labels , signs , models ) , drilling.
Technical parameters
| X axis travel | 220mm |
| Y axis travel | 120mm |
| Z axis travel | 200mm |
| Tool DIA. range | 2-12mm |
| Control system | KY1000MC CNC Controller ,Optional Mach3 |
| Instruction | DXF+G code template function, converting DXF automatically to G code for processing |
| MPG hand wheel | 4 axis |
| Spindle motor | 2.2kw |
| Spindle speed | 24000r/min |
| The max moving speed | 2000mm/min |
| The max feeding speed | 1000mm/min |
| Positioning accuracy | 0.03mm |
| Repeatability accuracy | 0.02mm |
| Transmission | ball screw |
| guide rail | High-precision linear guide |
| Table size | 460*130mm |
| T slot (amount*width) | 38*12mm |
| Max. load | 30kg |
| Table structure | Full cast iron |
| Power | 220VAC / 110VAC |
| Weight(NW/GW) | 165/200kg |
| Overall dimension | 850*650*850mm |
| Packing size | 930*750*1200m |
>>
