No-Girder Arch Sheet Building Making Machine

Product Description

Bohai Arch Roof Roll Forming Machine
Technical Parameter 914-650

Production Name	Bohai Arch Roof Roll Forming Machine
Size	8900mm X 2230mm X 2300mm (With Single Axle 4 Tires)
Total Weight	About 10 Ton
Thickness of Bending Leaf	10mm thickness, processed by CNC
Cutting Blade	12CrMov Material, Heat Treatment
Cutting Type	Mechanical Cutting
Forming Type	Roll-Formed and Length-Set Cutting
Power	Total Motor Power : 17.5KW Main Motor Power : 7.5KW Bending Power : 3.0KW+1.5KWx2 Cutting Power : 4.0KW
Seaming Power	1.1KW+1.1KW
Roller Material	45# High-Quality Steel, Quenched HRC 55~65, Hard Chrome Plating
Shaft Material	45# High-Quality Steel, Galvanized
Stand of Molding	13+1 Steps
Feeding Width	914mm
Effective Width	650mm
Using Rate	71.1%
Thickness Coil	0.5-1.6mm
Speed	Forming Part : 15m/min Bending Part: 13m/min Seaming Part: 16m/min
Suitable Span	4-26m
De-Coiler	Inner-Diameter of Coil : 450mm ~ 650mm, Max Width of Coil : 914mm ~ 934mm Load : 10Ton

Related Production

Model	Feeding Width	Effective Width	Thickness Coil	Largest Span
BH-600-300	600mm	300mm	0.5-1.6mm	30
BH-600-305	600mm	305mm	0.5-1.6mm	28
BH-914-400	914mm	400mm	0.5-1.6mm	40
BH-914-610	914mm	610mm	0.5-1.6mm	38
BH-914-650	914mm	650mm	0.5-1.6mm	26
BH-914-700	914mm	700mm	0.5-1.6mm	22
BH-914-750	914mm	750mm	0.5-1.6mm	14
BH-1000-610	1000mm	610mm	0.5-1.6mm	42
BH-1000-680	1000mm	680mm	0.5-1.6mm	38
BH-1000-700	1000mm	700mm	0.5-1.6mm	30
BH-1000-750	1000mm	750mm	0.5-1.6mm	24
BH-1000-800	1000mm	800mm	0.5-1.6mm	18
BH-1200-800	1200mm	800mm	0.5-1.6mm	40
BH-1220-800	1220mm	800mm	0.5-1.6mm	42
BH-1250-800	1250mm	800mm	0.5-1.6mm	45

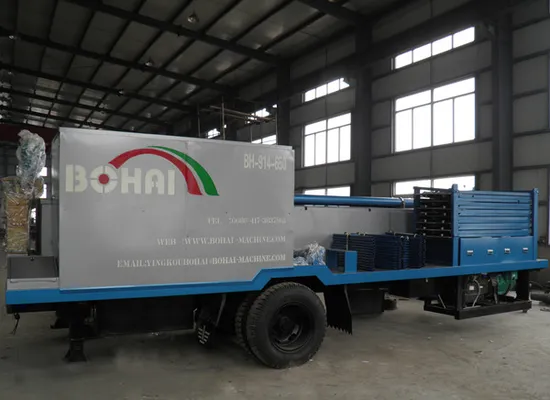

Machine Photo
Machine Detail Photo
Delivery
Our Company
Yingkou Bohai Machinery Equipment Manufature Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.
Q: What is your service?
A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
Machine Making Project Photo
Certificate: CE/ISO
Cooperation

Step 1: Tell us your requirements.

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative.

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production.

Step 5: Factory examine goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping.

Step 7: Handing shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.

Step 9: Provide overseas service for clients.

---
