China Mstar Powerful Veneer Composer Machine Woodworking Machine 48FT Machine

Product Description

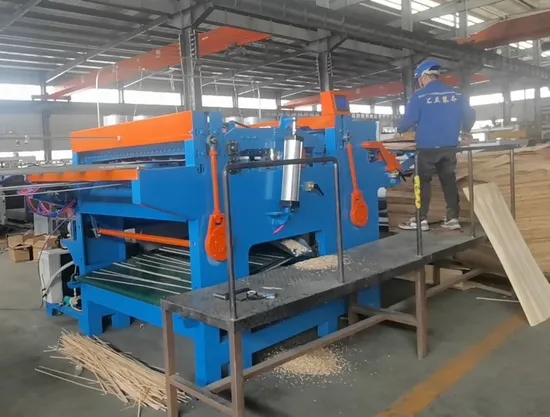

core veneer composer mainly used in horizontal splicing 2 or more pcs venner with same thickness joint to one veneer sheet.This machine can automatic stacking. It won't stuck and overlap the veneers while working, and the glue thread can stick tightly. This machine is easy to operate,and maintain.It's the best choice for the plywood producing factory or the factory specilized in producing various small and big size core veneer.
Veneer(l.2-3.6mm thickness) after drying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them rimmed, glued, spliced, cut to length and stacked automatically. With this machine, customized board of different sizes can be spliced. This machine is mainly used for the production of plywood, LVL, floor base material, furniture board, construction plywood, container flooring board, melamine plywood, blockboard...etc. and it can also be used for the horizontal splicing of rotary cut core veneer with the thickness of 1 2-3.6mm. This changes the traditional manual veneer forming technology and makes plywood paving unitized and automatic. Using this machine saves lots of core finishing worker, improves the quality of products and saves labor costs.
Description of effect
1. After tenderized using PLC controller to cut the edge, joint the core and piece cutting. 2. After the core has been tenderized. The strong blower device can remove the dust of the core veneer. 3. The PLC controller enables cutting more precise, it can available reduce the odd core. It helps control, monitor and maintenance more convenient. 4. The back-feeding wheel device is synchronizing with feeding speed, to avoid overlap or gap of the jointing core veneer, MSTAR machinery veneer composer machine are avaliable for sell 5. It is equipped with hot melt glue yarn for help jointing. Cooling water tank of glue yarn is circle well by the cooler. It gets the best jointting.

No	Tehcnical Specifications	Mstar Machinery
1	Model No	HORIZONTAL TYPE
2	Capacity (4'x8')	MATERIAL 280PCS(1270*640MM)
3	Working Length (Range)	970-1270MM
4	Min Width of Veneer	≥18CM
5	Composed Size	4*4'/4*8'
6	Veneer Thickness Range	1.4-3MM
7	Thickness Tolerance (+/- mm)	±0.04mm
8	No of Strings /Thread	7
	Type of Thread Covering	Thread line is open type not concealed.
9	SENSORS	15pcs
	No of Sensors	9 pcs sensors +6 appraching
	Individually Controlled	not individually controlled
10	CHILLER
	Capacity (Chiller)	0.42RT
13	Front Feeding	chinese riding
14	Back Feeding	chinese riding
15	Total Power	28KW
24	Operating Voltage	380V/415 V / 50 Hz. (customer-made)
17	Air Consumption	1M3
18	PLC	Delta
19	HMI	chinese kunlun
20	Rotary Cylinder	we use step motor replace rotary cyliner
21	Automatic Veneer Corrector	yes
22	Outfeed of Composed Core	only 1 side convey

OUR OFFICE


MSTAR MACHINERY CO., LTD is located in Linyi city of Shandong, China, and it is a modern professional enterprise and specialized in research, development, production and distribution of woodworking machineries. Our leading products are high speed spindleless veneer peeling line, sanding machine, hot press, saw, debarker and so on. Our high speed automatic veneer peeling line has become the benchmark of the peeling industry, with the advantageds of high efficiency, energy saving , time saving and labor saving.
By offering qualified products, perfect services and honest sales, we earn the applause from the world, We sincerely look forward to cooperate with you!
SHIPPING AND EXPORT:
TEAM & CULTURE

Q1:Can you customize products for clients?
A1: Yes .We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The configuration of motor and control system determines the change of price. Different quality determines different price.

Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.

---
