Fully Automatic Bottle Plastic Machines for Manufacturing 5L Lubricant Oil Bottles 1L 2L Small Plastic Jerrycan Blow Molding Bottle Making Machine

Product Description

Product Description
PE HDPE LDPE PP Automatic Blow Molding Plastic Chemical Tank making Machine
STBII-5L series 0-5L high speed small bottles Pharmacy Pesticide shampoo bottles blow molding moulding Machine is Suitable for making 0~5L PP PE HDPE LDPE PVC,PETG... plastic hollow bottles.
Applications: milk/ yogurt bottles, food pack containers, plastic jars, chemical bottles, cosmetic bottles, lubricant oil bottles, household ...
Product Description

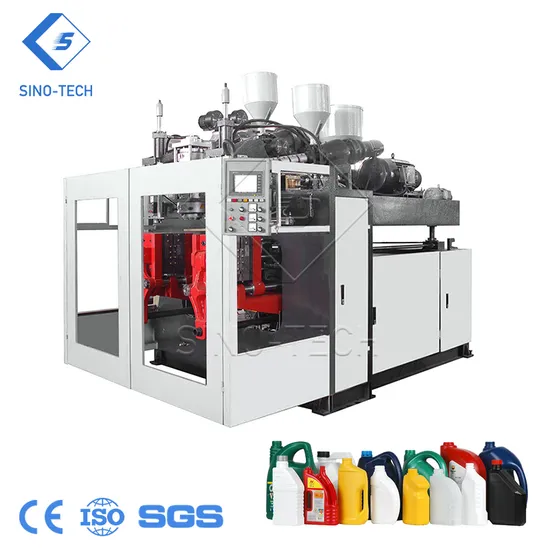

STBII-5L Continous Extrusion Blow Molding Machine
Machine Features
1. Special design for 5L PE/PP Jerrycan detergent bottles ...
2. Die head design with easy to change the material and color.
3. Latest mold changing system, much faster and easier.
4. Optimized hydraulic system, proportional pressure control
5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds
6. Simple structure in linear type, easy in installation and maintenance.
7. Servo system
8. With robot arm take out the finished product
9. One to three multi-layers choose
10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving
11. Full Servo system control.
12. Simple structure in linear type, easy in installation and maintenance.
13. With a robot arm take out the finished product.
14. Single die-head or multi diehead for choice. Single station or Double station can be chosen.
Product Parameters

Technical Specification
Specifications		STB-5L	STBII-5L
Max. Product Volume	L	5	2
Station		Single	Double
Dry cycle	pc/h	700	700*2
Screw Diameter	mm	70	80
Screw L/D ratio	L/D	25	25
Screw drive power	KW	22	30
Screw heating power	KW	12.7	17.6
Number of Heating Zone (Screw)	Zone	3	4
Output of HDPE	kg/h	70	110
Hydraulic pump driving power	KW	11	11
Clamping force	KN	110	110
Platen distance	mm	148-508	148-508
Mold moving stroke	mm	450	450
Max. Size of Mold	(W*H) mm	440*420	440*420
Capacity of Accumulator head	L
Max. Die diameter(Single-head)	mm	145	145
Die heating power(Single-head)	KW	7.6	7.6
No.of heating zone(Single-head)	Zone	3	3
Central distance of Bi-head	mm	160,180	160,180
Max. Die diameter(Bi-head)	mm	108	108
No.of heating zone(Bi-head)	Zone	5	5
Heating power(Bi-head)	KW	10.7	10.7
Blowing pressure	Mpa	0.6	0.6
Air consumption	M3/MIN	0.4	0.4
Cooling water consumption	Mpa	0.2-0.3	0.2-0.3
Water consumption	L/MIN	50	60
Size of machine	(L*W*H)m	3.43*1.77*2.58	4.10*2.60*2.7
Weight of machine	Ton	5	8

Detailed Photos
Application
Customize the products according to your requirement


Company Profile
Packaging & Shipping


FAQ
Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
