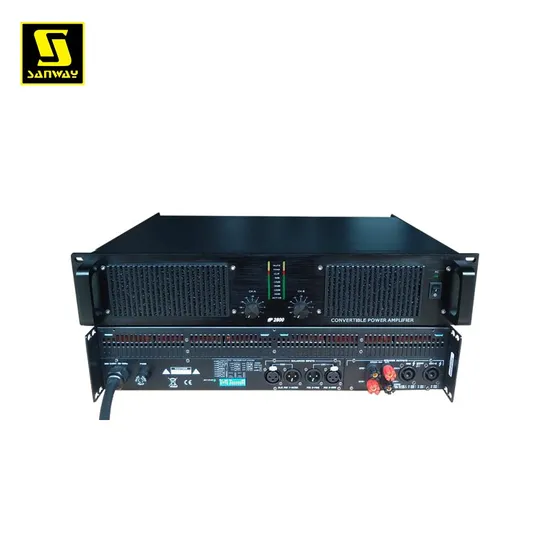

Fp2800 2 Channel Professional Stage Power Amplifier for Concert

Product Description

fp2800 2 Channel Professional Stage Power Amplifier for Concert
Product Description We use large current rectifier bridge to make sure the unobstructed supply current. Using independent shielding way in the high-voltage power part, able to reduce the interference to audio signal to the lowest level, and make sure the higher safety for electricity.
We use high performance audion; make the system can bear larger current, with better dynamic and safety. Each audion has to be checked strictly, make sure the consistency of amplifier and minimum distortion.
We use the way of mainboard power-supply for the process the audio signal, able to make the voltage more stable, clear and thick, and sounds much better. Reasonable wiring can reduce the interference between channels and input-output.
Product Features 1. Very high power and channel density;
2. Class TD amplifier topology;
3. Regulated Switch Mode Power Supply;
4. Efficient cooling system;
5. Adjustable parameters;
6. Comprehensive protection and warning;
7. XLR input connectors;
8. Heavy-duty binding post or Speakon output connectors.
Product Application 1. Stage Concert;
2. Conference centres;
3. Museums;
4. Sports venues;
5. Home theaters;
6. Churches;
7. Shopping malls,
8. Restaurants.
Product Parameters

ITEM	FP2800 2 Channel Stage Power Amplifier for Concert
Output Power	20-34KHz,1W with 1KHz
8Ω Stereo Power(RMS)	950W ×2
4Ω Stereo Power(RMS)	1350W×2
2Ω Stereo Power(RMS)	1650W x 2
8Ω Bridged Power(RMS)	2300W
4Ω Bridged Power(RMS)	2800W
Frequency Response(+0/-0.3dB, 1W/8Ω)	20Hz-20KHz ±0.5dB
THD+N	10KHz <0.05%
Signal-to-Noise Ratio	103dB
	40V/uS
Input Connectors (per channel)	Female XLR(PIN+2, Configurable for pin 3+). TRS(tip+)
Output Connectors (per channel)	5-way binging posts or Speakon connectors(market dependent)
Class	TD
TourClass Protection	turn-on/off transient, current inrush, sub/ultransonic input
Voltage Gain(dB)	20,23,26,29,32,35,38,41, dB selectable
Cooling	4 pcs variable speed DC fans , better than conventional cooling
Controls	Front-panel:2 attenuators, power switch, Rear panel, signal ground lift & mode switches
Dimensions(WXHXD)	483×88×396mm
Packing dimension	580×180×560mm
Net weight(kg)	12.5
Gross weight(kg)	16.5

Detailed Photos
