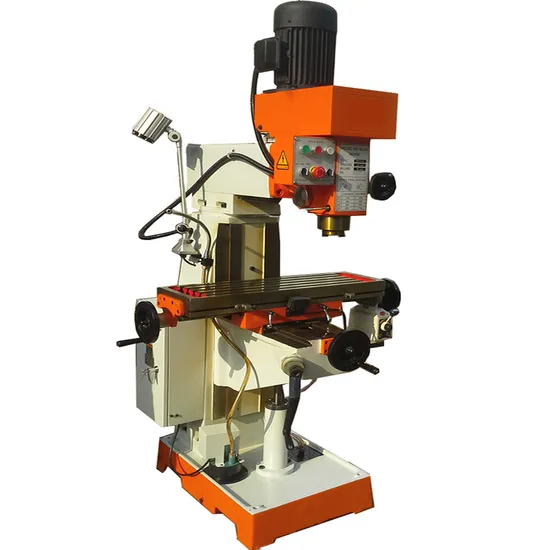

Gear Drive Belt Drive Universal Vertical Drilling and Milling Machine Zx7550cw

Product Description

gear drive belt drive universal vertical drilling and milling machine zx7550cw FEATURE
drilling and milling machine feature:
Main features:
1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5.Three axis hardened treatment, high rigidity.
6.vertical horizontal multi-functional ,drilling ,milling, boring operation.
7.X axis mechanical feed,Y.Z axis can be added the device
8.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate
SPECIFICATIONS
drilling and milling machine specification:

Model	ZX7550W	ZX7550CW
Max.drilling dia (mm)	50	50
Max.horizontal milling dia (mm)	100	100
Max.vertical milling dia (mm)	25	25
Max.boring dia (mm)	120	120
Max.tapping dia	M16(Vertical)	M16
Spindel Tapper	ISO30/R8	ISO30/R8
Distance.spindle to table surface (mm)	80-460	90-490
Spindle speeds range (r.p.m)	230-1825(Vertical) 80-1300(horizontal)	(Vertical)115-1750 (Horizontal)60-1350
Spindle travel	120	120
Table size (mm)	800x240	800×240
Table travel (mm)	400x230	400×230
Overall dimensions (mm)	1280×1100×2080	1280×1100×2080
Motor (Kw)	0.85/1.5(Vertical) 1.1(horizontal)	( Vertical)0.85/1.5 (horizontal)2.2
N.W/G.W (Kg)	700/880	850/1000
Model	ZX7550	ZX7550C
Max.drilling dia (mm)	50	50
Max.horizontal milling dia (mm)	100	100
Max.vertical milling dia (mm)	25	25
Max.boring dia (mm)	120	120
Max.tapping dia	M16	M16
Distance.spindle to table surface (mm)	140-490	90-490
spindel taper	ISO30/R8	ISO30/R8
Spindle speeds range (r.p.m)	230-1825	115-1750
Spindle travel	120	120
Table size (mm)	800×240	800×240
Table travel (mm)	400×230	400×230
Overall dimensions (mm)	1100×1100×2080	1100×1100×2080
Motor (Kw)	0.85/1.5	0.85/1.5
N.W/G.W (Kg)	610/770	610/770

ACCESSORIES
drilling and milling machine accessories:
Standard Accessories:
1.Drill chuck
2.Mill chuck
3.Reduction sleeve
4.Maching vice
5. Wrench
6. Inner-hexagonal spanne
7. Camlock
8.Wedge shifter
9. Spindle arbor
10. Horizontal milling bilt
11. Operation manual
12.Quality certificate
13. Packing list.
Optional Accessories:
1.Digital read out
2.Milling chuck collets
3.Machine vice
4.Clamping kits
5.Universal dividing head
6.Rotary work table
7.Slotting head
Detailed Photos
drilling and milling machine more photos:
If you are interested in drilling and milling machine , pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person : kitty xu

---
