Yg Concrete Pump Hydraulic Cylinder Concrete Pump Truck Mounted Concrete Pump S Valves

Product Description

Product Description

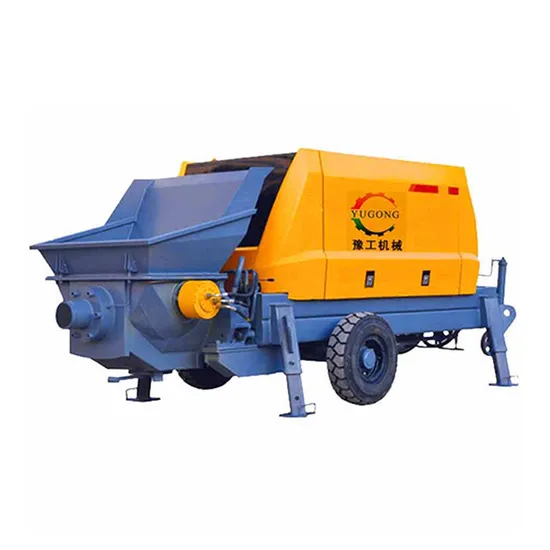

CONCRETE PUMP
Newly developed concrete pump can deliery concrete, mortar, cement, fireproof material, etc. It is suitable for fine stone concrete transportation to higher construction floor column pouring.
It is the smallest concrete pump in China, mainly for some special construction conditions or narrow sites, which is inconvenience in work or difficult to complete the construction schedule.
Machine Features:
1. Hydraulic system adopts independent three-loop control, high reliability glass plate and cutting ring are with hard alloy, wear resistance and long service life.
2. Pump mechanism uses a two-cylinder piston, with advanced performance and good continuity.
3. Electrical components such as contactors and push button switches are reliable in operation, simple in control circuit, and equipped with switches for easy operation.
4. The main seals are made of high-quality seals to prevent internal and external leakage of the hydraulic system.

Product Parameters

Model	YG-10	YG-20	YG-30	YG-40
Voltage	380V three-phase 50Hz	380V three-phase 50Hz	380V three-phase 50Hz	380V three-phase 50Hz
Max Flow	6-8m3/h	10-12m3/h	15-20m3/h	20-25m3/h
Max Output Pressure	10 Mpa	12Mpa	20Mpa	20Mpa
Max Convey Distance	Horizontal 30-40 m	Horizontal 50-60 m	Horizontal 90-150 m	Horizontal 120-240 m
	Vertical 10-20 m	Vertical 20-30 m	Vertical 30-60 m	Vertical 40-100 m
Max Partical Size	≤20 mm	≤20mm	≤20mm	≤20mm
Cylinder Diameter*Travel	φ110*360 mm	φ110*360 mm	φ110*360 mm	φ110*360 mm
Pipe Diameter	φ80(65) mm	ф80-φ100	ф80-φ100-φ125	ф80-φ100-φ125
Hydraulic System	Full Hydraulic	Full Hydraulic	Full Hydraulic	Full Hydraulic
Hydraulic Oil Cooling	Air-cooled	Air-cooled	Air-cooled	Air-cooled
Dimensions	1750*700*1100 mm	3000*1200*1400mm	3800*1600*1600mm	3800*1600*1600mm
Weight	650 kg	800kg	1800kg	2200kg

Tell us your requirements and we will recommend a suitable model for you
Detailed Photos

Packaging & Shipping
Company Profile
FAQ
1. Who are we?
We are based in Henan, China, start from 2016, sell to South Asia(18.00%), Eastern Europe(14.00%), Domestic Market(13.00%), Mid East(11.00%), South America(10.00%), Southeast Asia(6.00%), Western Europe(6.00%), North America(5.00%), Oceania(5.00%), Northern Europe(4.00%), Central America(3.00%), Africa(2.00%), Southern Europe(2.00%), Eastern Asia(00.00%). There are total about 300 people in our office.
2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Liquid Filling Machine,Powder Filling Machine, Granule Packaging Machine, Paste Liquid Packaging Machine, Powder Packaging Machine
4. Why should you buy from us not from other suppliers? We insist on the strategy of technology research and development. Technical design, material purchasing, precised manufacturing and strict quality inspection are all processed according to the ISO 9001 standard.
5. What services can we provide?Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, FCA, CPT, DEQ, Express Delivery;Accepted Payment Currency: USD, EUR, HKD, CNY;Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow;Language Spoken: English, Chinese

---
