450/750V Epr Pcp Flexible Copper Rubber Cable with H05rn-F H07rn-F Yc Ycw

US$0.50-10.00 100 Meters (MOQ)

Basic Info.

Model NO.
H05RN-F H07RN-F Rubber Cable
Current
DC & AC
Insulation Material
Rubber
Sheath Material
Rubber
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC, CE, RoHS, VDE
Model
H05rn-F H07rn-F Rubber Cable
Brand
Chang Qing Teng
Number of Cores
Single/2/3/4/5/6/7/8/10/16 Core...
Cross Section Area/Measure
3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard
IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 502
Conductor
Stranded/Solid/Flexible Copper/Aluminum Conducto
Insulation
XLPE/PVC/PE/PUR
Aplication
Electric, House Wire, Building Wire...
Shield
Copper Wire Screen(Cws), Aluminium Wire Screen (a
Armoured
Steel Tape Armoured (Sta) or Steel Wire Armoured
Transport Package
Non-Fumigation Wooden Drum, Iron-Wooden Drum.
Specification
350x160x270,800x350x550,1000x500x600,1200x500x900.
Trademark
Luxing
Origin
Shandong
HS Code
8544492100
Production Capacity
500000meters/Year

Product Description

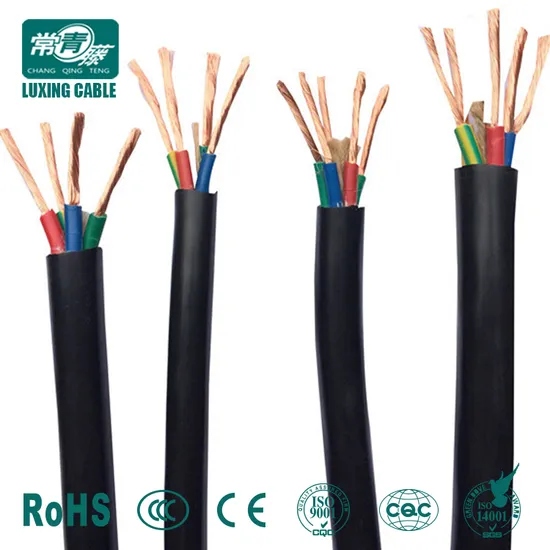

1.H05RN-F H07RN-F Rubber Cable
This cable is primarily used in all kinds of electrical equipment, such as the mobile power of household appliances, electric machinery,
electrical equipment and tools, and it is also can be used in indoor or outdoor enviroment conditions.
Conductor: Stranded bare or tinned soft copper wire
Insulation: EPR (Ethylene-Propylene Rubber)
Sheath: Neoprene (Chloroprene rubber)
2.Specification And Working Condition:
1)The rated voltage for YQ type is 300/300 V, YZ/YZW type(H05RN-F) is 300/500V,YC/YCW type(H07RN-F) is 450/750V.
2)The long-term working temperature allowed by conductor should be not more than 60 ° C.
3)W-type cable with climate resistance and oil resistance, suitable for outdoors or in contact with oil occasions.
4)ZR type cable has flame retardant properties, can be used for fire-retardant occasions.
Code IEC Description Voltage Design Cores
H05RR-F 60245IEC 53(YZ)/YZ Ordinary rubber sheathed cord 300/500V 2~6
H05RN-F 60245 IEC 57(YZW)/YZW Ordinary polychloroprene or other equivalent
synthetic elastomer sheathed cord
300/500V 2~6
H07RN-F 60245 IEC 66(YCW)/YC Heavy polychloroprene or other equivalent
synthetic elastomer sheathed flexible cable
450/750V 1~5, 3+1/3+2/4+1
H01N2-D 60245 IEC 81(YH) Rubber sheathed arc-welding electrode cable 100/100V 10-120
60245
IEC 82(YHF)
polychloroprene or other
equivalent synthetic
elastomer sheathed arc-welding electrode cable
100/100V 10-120

3.Advantages Of H07RN-F:
The H07RN-F cable is used at medium mechanical stress in dry, wet and damp locations, as well in free air.
Also for fixed installation on plaster or machines. The cable is resistant to oil, UV-radiation and ozone.
Flexible
The H07RN-F is a flexible cable, ideal for mobile use.
This means that the cable can be used several times and can be applied for temporary purposes.
In addition, it is easy to handle and pliant making it easy and compact to store.
Its flexibility is also an advantage for small-spaced fixed installations as smaller bends can be made. Due to the flexibility of the cable,
it is easier and faster to install, which saves more time and reduces costs.
Oil Resistant
The H07RN-F is oil resistant which means the cable can withstand aggressive oil containing substances.
These substances will not affect the cable, the functionality of the cable will be maintained and the risk of irreparable damage is lower.
UV Resistant
Cables that are not UV resistant will be affected when they are exposed to direct sunlight.
The H07RN-F is UV resistant and can therefore be used above ground in the open air.
The outer sheath of the cable will not be harmed by the ultra-violet light which normally dries out a cable or causes cracks or bursts in the sheath.
This will preserve the functionality of the cable.
Flame Retardant
Cables used to be responsible for spreading fire. The H07RN-F is flame retardant.
This means that this cable is designed in a way that it will not spread fire.
Cables with these advantages are often used in buildings and at locations where people live, work and travel / move.
4.Why buy cables from luxing cable factory?
1) Reliable material;
-Each raw material into the plant, must undergo a rigorous selection and testing,
-To ensure that the best material to you.
2) Strict production;
-24 production processes, 24 detection processes,
-Each of the strict control procedures to ensure cable safety.
3) Safe packaging ;
-Using wood fumigation plate, plus metal packaging,
-reliable transport so that cable safely arrived at your site.
