Z5025 Small Round Column Vertical Metal Hole Drilling Machine for sale

Product Description

Z5025 Small Round Column Vertical Metal Hole Drilling Machine for sale
Product Description
The main performance characteristics:
1.Change speed with gears and operate easily ,
2.High spindle speed and wide speed range,
3.Charcteristic auto tool releasing device guarantees it is very easy to change tool ,
4.Equipped with coolant system and work lamp.
Application:
Ideal choice for single piece and small batch production mass, production for drilling ,counter boring, tapping screws, spot facing machining, etc. Product Parameters
Product main technical Specifications:

Specifications	Units	Z5025	Z5025B
Max. Drilling capacity	mm	25	25
Diameter of column	mm	100	100
Spindle travel	mm	150	150
Distance spindle axis to column generating line	mm	225	225
Max. spindle nose to table	mm	630	/
Max. spindle nose to base	mm	1670	550
Spindle taper		MT3	MT3
Spindle speeds range	r/min	100-2900	100-2900
Spindle speeds series		8	8
Spindle feeds	mm/r	0.07 0.15 0.26 0.40	0.07 0.15 0.26 0.40
Dimension of worktable surface	mm	440	/
Table travel	mm	560	560
Dimension of base table	mm	690x500	690x500
Overall height	mm	1900	1390
Spindle motor power	K w	1.1/0.75	1.1/0.75
Coolant motor	w	40	40
G.W/N.W	kg	300/290	235/225
Packing dimension	cm	70x56x182	78x52x117

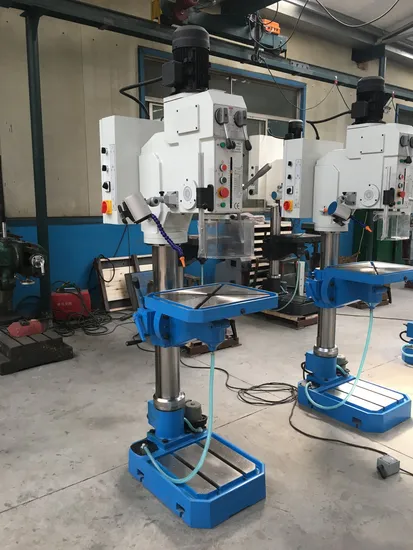

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
