| US$3,300.00-3,500.00 | 1 Piece (MOQ) |

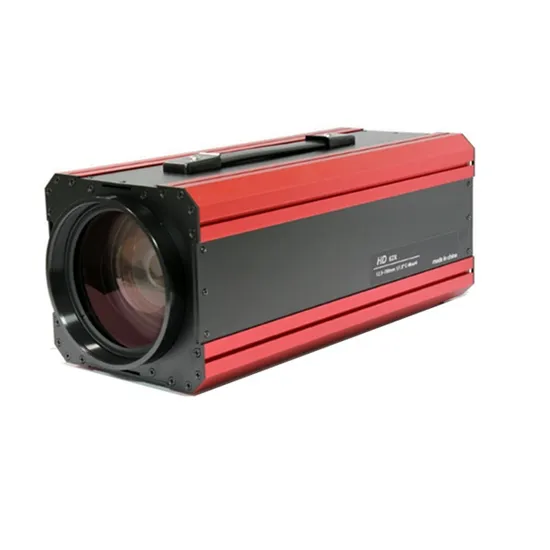

| Technical Parameter of HD Motorized Zoom Lens | |||
| Model No.: 02-010-001 | |||
| No. | Item | Specification | |
| 1 | Imager size | 1/1.8"(9mm) | |
| 2 | Pixel | 3MP | |
| 3 | Focal Length | 12.5~780mm | |
| 4 | Interface | C-Mount | |
| 5 | FNO.(Max) | F3.5 | |
| 6 | FOV(16:9) (DxHxV) | 1/1.8'' | W:38.90°×33.90°×19.06° T:0.66°×0.575°×0.324° |
| 1/2'' | W:34.74°×30.26°×17.03° T:0.61°×0.51°×0.30° | ||
| 1/3'' | W:26.35°×22.96°×12.91° T:0.45°×0.40°×0.21° | ||
| 7 | RFL(in air) | 29.3mm | |
| 8 | Control Mode | Focus | Electrical/Motorized |
| Zoom | Electrical/Motorized | ||
| Iris | DC automatic | ||
| 9 | Distortion Rate | 1/1.8'' | W:-1.63%@y=4.5mm T:1.35%@y=4.5mm |
| 1/2'' | W:-1.50%@y=4.0mm T:1.14%@y=4.0mm | ||
| 1/3'' | W:-1.01%@y=3.0mm T:0.68%@y=3.0mm | ||
| 10 | Focus range | 5m~∞ | |
| 11 | Filter size | M114×P0.75 | |
| 12 | Dimension(WxHxL) | 148×141×348mm | |
| 13 | Weight | 5.6Kg | |
| 14 | Working Temperature | -30~+60ºC | |
| 15 | Characteristics | Antifog, Day night. | |
