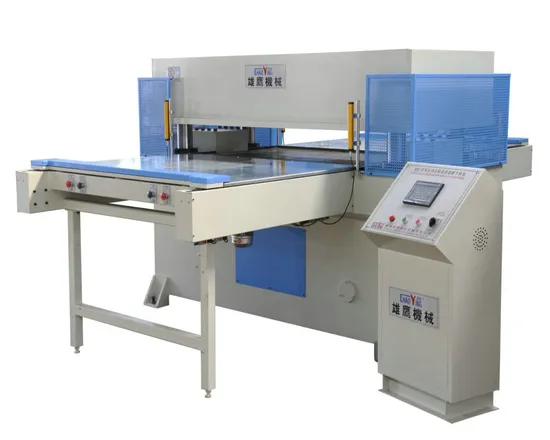

Double Side Auto-Feeding Precision Four-Column Plane Cutting Machine

Product Description

Double -side auto-feeding table precision four-column hydraulic plane cutting machine
Use and character
It is suitable for cutting all kinds of paperboard,textile,plastic and rubber material,foam ,packing material ,floor,carpet,fiberglass,soft wood sheet and etc,by the cutting die.It is especially suitable for big size and high pressure cutting.
1.PLC control screen program control,it has two kinds of cutting die setting mode to choose for cutting.(automatic and manual)
2.Double-side auto-feeding table device,it can improve the cutting efficiency.
3.Double oil cylinders,precision four-column auto-balancing link structure,which can guarantee uniform cutting depth of each cutting position.
4.When upper cutting board drops down and touches cutting die,it can automatically slow cutting to make the cutting material no size error between the top and bottom layers.
5.Equipped with centarl oil supply automatically lubricating systerm,to ensure working precision and prolong the service life of machine.
6.Operating with both hands,ensure high safety of operators.
Technical specification

max.cutting force	1200kn	1500kn	2000kn
stroke adjustment range	0-160mm
range between the worktable	50-210mm
size of upper cutting board	1600*1100mm
size of lower worktable	1600*1120mm
motor power	11kw
overall dimension	2580*3760*1650mm	2650*3780*1750mm	2700*3780*1850mm
total weight	5500kg	6500kg	9000kg

About us
Exhibition
Client visiting
why choose us?
1.Our company is specialized in hydraulic cutting machine for more than 20 years,15 years exported experience.
2.As per client demand,we can customize machine.
3.We're manufacture,not trading company,price is competitve.
4.Strict quality control,each machine must test10-12 hours before leaving factory.
5.Good after-sales service system, support online video, email, within 8 hours online reply.

---
