Active Safety Video Termimal Dsm, Adas, Faceld Function, DVR

Product Description

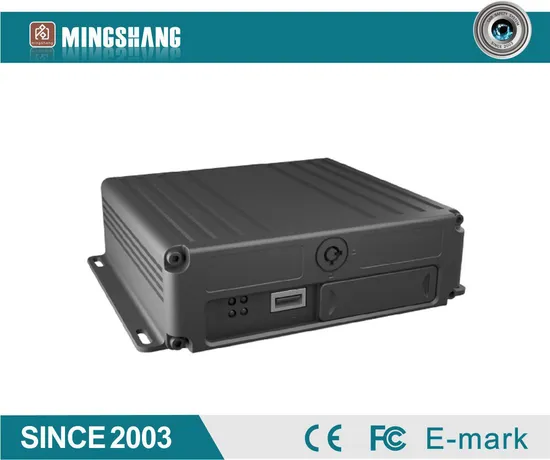

MS-TD301 is a cost-effective, functionally expandable 4G vehicle-mounted terminal integrating video surveillance, driving record and active safety monitoring.
MS-TD301 uses dual SD cards for recording, with 1080P, 720P, D1, HD1, CIF and other resolutions. It uses a high-speed processor and embedded operating system,combined with advanced H.265 video compression/decompression technology, mobile communications, and positioning technology, to achieve video recording,car driving information recording and wireless data upload, central remote monitoring, remote management, vehicle data collection and analysis, driving behavior analysis,sound and light alerts of dangerous driving behaviors, real-time monitoring of the state of vehicles and drivers, avoiding fatigue driving and speeding, reducing accident risks,and ensuring vehicle driving safety.

Peripheral interface	Vehicle signal collection		Support 4 channel signal acquisition
	1 expansion port	Standard RS232 interface	Adaptive
	LED indicator	Work status indication	4 indicator lights
	Intercom/TTS speaker		Intercom and speaker interface, alarm and various text and voice announcements
Video interface	Video/audio interface	Aviation head interface	4-channel AHD video input interface; video 1/video 2 can be used as DSM and ADAS input
	Extension ports	USB interface	Front USB interface
		IPC/LAN interface	Use adaptor to connect to aviation head socket
		Video output interface	CVBS output, use adaptor to connect to aviation head socket
Storage function	Parameter class	System parameter storage	Storage of device working parameters
	BSD data	Blind zone data stored in primary and secondary links	Can store 10,000 pieces of BSD data
Maintenance function	SMS configuration function	Installation configuration information	Support configuration of terminal parameters via SMS
	Remote upgrade	Central server upgrade	Support to upgrade the terminal program through the server
	Installation calibration	Active safety calibration	Support general calibration for DSM, ADAS and parameter configuration

Company Profile MINGSHANG is one of China s leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for:
☆ Commercial and School Buses
☆ RV`s and Motorhomes
☆ Industrial & Construction Equipment
☆ Cargo and Delivery Vans
☆ Trucks and Semi-Trailers
☆ Agricultural Vehicles & Equipment
☆ Pickup Trucks and Tow Trucks
MINGSHANG has over 15 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.
MINGSHANG is proudly to serve FEDEX, FORD, GMC, YUTONG BUS, KINGLONG and WEACO.
MINGSHANG certified with IATF16949:2016& IS09001:2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, E-MARK and etc.

---
