220kw China High Quality and Energy Saving 2.5-3.5 Tons/Hour Biomass Wood Pellet Mill Price

Product Description

220kw China High Quality and Energy Saving 2.5-3.5 tons/hour Biomass Wood Pellet Mill Price
Product Description

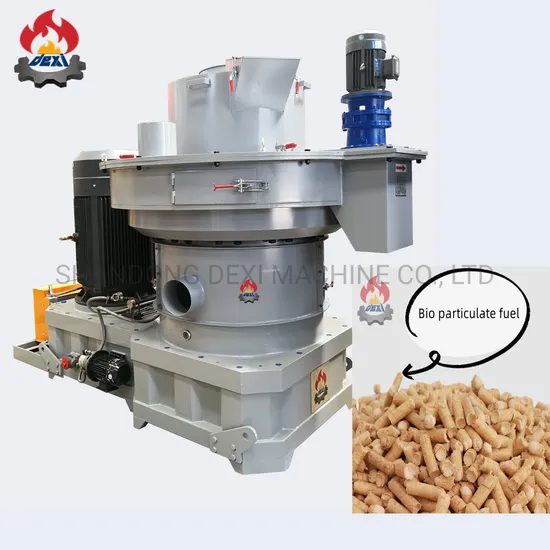

In the video is our ring die pellet machine, the model of this machine is 220kw-XGJ-850P,it's output capacity is 2500-3500kgs/hour, the pellet diameter can be 6 mm, or 8 mm by change ring die.
XGJ850P wood pellet maker machine is mainly using for press different kind of biomass materials into cylinder shape pellets, the output pellets is good green fuel energy for fireplace or industry biomass burner.
XGJ series CE certificate wood pellet machine is our main product which has adopted the essence of pellet mill in oversea market.
Spare Parts
1. Famous Motor:
The motor is a famous brand motor with a three-year warranty.
2.Big&Stable Gearbox:
In the gearbox, the transmission is stable, low noise , the service life is long, and it can withstand high power and heavy load.
3. Gear Oil Lubrication Pump&Motor:
The gearbox has its own lubrication and cooling system, which can cool down the lubricating oil without stopping the machine to ensure long-term operation.
4. Feeder Hopper:
This design can avoid the raw material be stuck in pelletizing chamber.
5. Pelletizing Chamber Inside:
The pelletizing chamber inside including the double layer ring die which made of astainless steel and the roller assembly,these two parts have the following characters: Particular design, reasonable structure, low energy, high efficiency, long life and so on.
6.Radiator:
Cooling the oil which inside the big gearbox.
Product Parameters

Model	Power (kw)	wood pellets makingCapacity (kgs/h)	Weight of the machine(kgs)	Dimension of the machine (mm)
XGJ460	55+1.5+0.55+1.5	500-800	4200	2600x1100x1850
XGJ460P	55+1.5+0.55+1.5	500-800	3200	2300x1100x1500
XGJ560	90+1.5+0.75+0.55+2.2	1000-1500	6100	2600x1300x2300
XGJ560P	132+1.5+0.75+0.55+2.2	1500-2000	4600	2600x1250x1600
XGJ700P	160+1.5+0.75+0.55+2.2	2000-2500	14500	3300x1400x3100
XGJ850	220+3+0.75+0.55+3	2000-3000	9600	2600x1600x1950
XGJ850P	220+3+0.75+0.55+3	2500-3500	1350013500K	2650×1850×2100
XGJ850P	250+3+0.75+0.55+3	3000-4500	15000	2750×1850×2100

Machine's Advantages: 1.XGJ850P wood pellet mill is update version of XGJ850, the machine with big strong industry gearbox, make the motor and machine shaft directly connected with the gearbox, improve the transmission efficiency, make the machine stronger and more stable.
2.The ring die is made of double-layer stainless steel.
3.the motor is a famous brand motor with a three-year warranty.
4.This wood pellet maker with totally automatically lubrication system, the gearbox with lubrication pump let the gear oil cycle lubrication of each bearing and gear.
5.And there also another grease pump regularly inject grease to the roller bearing.
So, this machine can long time no stop continually working.
Pellet making process: Wood pellet mill is mainly applicable for difficult molding materials with low adhesion rate, for example, hard wood sawdust, rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials.
When working, material from feeding mouth vertically to the roller frame board surface, through the rotation of the roller frame board, continuous uniform within the mold cavity surface. (the surface for roller connected ring die), under the roller rolling powder material through the die hole (Uniformly distributed in the inner surface of die).
This process is the role of material under high pressure, high temperature, produce a physical change or proper chemical changes(depends on different kind of raw materials ), make the powder material form elongated cylindrical solid body, the cylindrical solid elongation continuously will be cutting by uniformly distributed around the mold cutting knifes, become to "pellets" the pellet pusher will collecting the pellets to the outlet place.
(Product structure chart) Pellets under the action of gravity automatic fall, this pellet making process is complete.
Application:

Packaging & Shipping

Certifications
Factory Tour

---
