Factory Production CNC Machine Milling Machine Tool CNC Turning Machine

US$3,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
KDVM1370L
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
4300X2300X2700mm
Specification
1480X700mm
Trademark
KADAI
Origin
Zhejiang China
HS Code
84571010
Production Capacity
523

Product Description

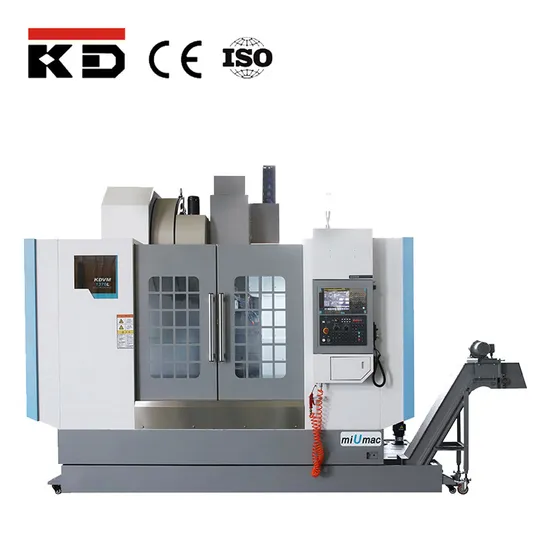

KDVM1370L High Speed CNC Milling Machining Center
PRODUCT SPECIFICATIONS

MODELS
KDVM1370L
TRAVEL

X axis
1300mm
Y axis
700mm
Z axis
700mm
Spindle center to column
752mm
Spindle end to table
150-800mm
TABLE

Tablesize
1500×700 mm
T-slot(width×number×space)
18mm×5×145mm
Max.table loading
900kg
SPINDLE

Taper bore of spindle
BT40
Spindle power
11/15kw
Spindle speed
8000rpm
FEED

X/Y/Z fast travel speed
20/20/20m/min
Torque axis motors
27/27/27Nm
ATC

Tool number
24
Max.tool length
300mm
Max.tool weight
8kg
Time (tool-tool)
2s
ACCURACY

Min.Input
0.001mm
OTHERS

Overall dimension (LxWxH) with auto conveyor
3850x2770x2835 mm
Net weight
9500kg
