US$68,000.00-70,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
520CNC Grinding Machine
Type
Surface Grinding Machine
Processing Object
Hardware Mold Accessories
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Usage
Metal Surface Grinding
Machine Name
CNC Grinding Machine
Specification
1.8*1.8*1.9M
Product Description
Product Description

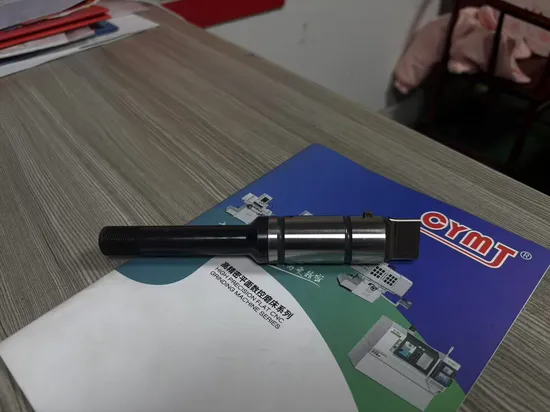

Introducing the CYMT CNC Profile Grinding Machines and Punching Bar Grinding Machines, a pinnacle of precision engineering and efficiency.
The CYMT-CNC revolutionizes the ease of operation, distilling complex procedures into streamlined simplicity.
Experience an unprecedented improvement in control and performance with our advanced CNC grinding technology.
Designed for effortless learning and mastery, this system is your gateway to expert-level proficiency.
| parameter | | 520CNC | 730CNC |
Travel | Table size (x*y) | mm | 200×450 | 300×650 |
X axis travel | mm | 450 | 650 |
Y axis travel | mm | 200 | 300 |
Max center of wheel to table | mm | 400 | 400 |
Maximum load | kg | 100 | 200 |
Table | Table T cell specification | mm×N | 12×3 | 12×5 |
Table speed | m/min | 0-25 | 0-25 |
Y axis | Minimum feed | mm | 0.0001 | 0.0001 |
Single feed | | 0.0001~10 | 0.0001~10 |
Fast moving speed | mm/min | 0~5000 | 0~5000 |
Z axis | Minimum feed | mm | 0.0001 | 0.0001 |
Fast moving speed | mm/min | 0~5000 | 0~5000 |
grinding | grinding wheel size max | mm | Φ180×Φ31.75×20 | Φ180×Φ31.75×20 |
grinding wheel speed | R.P.M | 0~4500 | 0~4500 |
motor | spindle motor | W | 3700 | 5500 |
the Z axis motor | W | 1700 | 1700 |
the Y axis motor | W | 750 | 1100 |
the X axis motor | W | 750 | 1100 |
cooling motor | W | 90 | 90 |
Roller dresser motor (optional) | W | 750 | 750 |
Fourth axis motor | W | 750 | 1100 |
Size | height of machine | m | 1.8*1.8*1.9 | 2.2*2.0*2.0 |
floor space | m | 2.1*2.3*2.1 | 2.5*2.5*2.2 |
weight(about) | kg | ≈1600 | ≈2800 |
general picture | Maximum clamping diameter | mm | 25 | 45 |
Maximum perforation diameter of indexing head | mm | 25 | 45 |
Positioning and Repeat Positioning Accuracy≤ | mm | 0.003 | 0.003 |
Transverse machining length (standard installation) | mm | 150 | 300 |
Vertical processing length (standard installation) | mm | 60 | 160 |
Controller Functions and Features
CYMT-CNC Control System
The Cheng Yu CYMT-CNC controller boasts a multitude of features powered by robust computing capabilities and an enhanced Human-Machine Interface (HMI). Forget tedious programming or UG systems; effortlessly tackle large and intricate machining and grinding tasks. Pause and adjust processing parameters on-the-fly without losing progress, resuming from the exact point of interruption. This flexibility empowers operators to refine processing parameters dynamically, elevating efficiency to new heights.
Features
1. Seamlessly bring any shape to life with a straightforward program capable of editing tooth shapes, complete with a graphical display for intuitive management.
2. Utilize the grinding wheel array to refurbish multiple shapes repetitively on a single wheel, optimizing cyclic use.
3. Automatic tool-setting capabilities: Simply define the punch bar diameter and YZ reference for instant processing insights.
4. Handwheel simulation trial processing: A safeguard function to prevent novice errors from causing critical mishaps.
5. Experience the extra grinding and processing complementary function, ensuring precision in processing tolerance.
6. Programmable scheduled grinding allows for self-programmed multi-task processing with ease.
7. Preset multiple processing types for direct selection. For instance, a waist circle requires only the input of dimensions to complete processing. Achieve complex tasks like eccentric following effortlessly.
8. Grinding wheel memory function ensures the re-utilization of numbered grinding wheels without the need for retooling.
9. Adaptable processing technology: Modify processes on demand, unlocking limitless efficiency enhancements.
Company Profile
Cheng Yu Machinery Technology Co., Ltd., born in the dynamic city of Dongguan, Guangdong Province, carries the expertise of three decades of Taiwanese grinding machine manufacturing. Our journey is marked by the dedication and precision of our technical team, who collectively bring a rich tapestry of accumulated knowledge in this field.
In the fast-paced world of CNC machine tools, the future is vigorous and inspiring! As trends evolve, we see a fascinating shift towards high-speed, high-precision capabilities, amalgamated with intelligent and composite designs. The horizon of CNC machines is expanding with open systems, parallel drive mechanisms, enhanced networking, and a commitment to green, sustainable technologies. Dongguan Chengyu Machinery Technology Co., Ltd. stands as a beacon of innovation in the realm of machine tools and accessories. We firmly adhere to our core values of 'technology, innovation, and reliability,' while our quality policy encapsulates the essence of 'meticulous craftsmanship.' By comprehensively understanding customer processes, technology needs, production types, and quality demands, we meticulously design and elevate our production technological prowess. Our products are not merely machines; they are solutions that push the boundaries of numerical control industry spaces, delivering high automation, precision, and quality. Our sophisticated quality management system, coupled with state-of-the-art equipment and unparalleled technology, ensures that we consistently meet and exceed customer expectations. Rising to the challenges of ever-evolving market demands, Chengyu Machinery has meticulously crafted a series of high-precision CNC machines. Our extensive portfolio includes surface grinding machines, CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders. Furthermore, we excel in the design and manufacture of industrial robots and automated production lines, driving integrated applications to new heights. Here is a snapshot of our premium CNC grinding machine series: I. HS Series 618 / 250 / 3060 / 4080 / 40100 (Available in both servo and hydraulic types) Processing Capacity: Masterful at surface grinding and grooving to meet diverse requirements. With our exclusive patented hydraulic control system (hydraulic type), precision and efficiency are guaranteed. Functionality: Loaded with advanced grinding programs for flat surfaces and groove cutting. Feed Mode: Choose from front, back, left, or right selections. Each program remembers your preferred feed mode. Grinding Wheel: Equipped with overload protection for automatic shutdown ensuring safety. II. (Servo and hydraulic types available) Processing Capacity: Unmatched capabilities in surface grinding, grooving, and combined scheduling. Patented Hydraulic Control System: Our hydraulic systems are revolutionary and exclusive. Functionality: Delivers various grinding programs, including surface, groove, sole, side, unequal distance, and depth displacement grinding. Grinding Wheel Dressing: Features automatic bottom plane dressing, with rough and fine grinding settings and compensation during grinding cycles. Feed Mode: Customize your feed direction with memory for each grinding program. Grooving Capabilities: From equidistant to non-equidistant grooving, tailored to your specific needs. 3. Four-Axis CNC Grinding Machines: Available in both horizontal and vertical configurations Processing Types: From arbitrary equal divisions to skipping tooth processes, versatility is the hallmark. Waist Circle Processing: Input AB size for precise outcomes. Triangle Fillet: Simply enter inscribed circle size B and fillet size R for perfect curves. Quadrilateral Fillet: Enter side lengths A, B, and fillet size R to achieve desired shapes. Eccentric Circle Processing: Define eccentricity and starting/ending diameters for exactness. Circle Processing: Enter starting and ending diameters to create flawless circles. Arc Processing: Specify arc size and rotation angle for precise arc formations. Step Difference & Rotation Profile: A suite of configurable options tailored to precision engineering needs. Processing schedules are conveniently saved as files, streamlining future operations with ease and efficiency.
FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Shenzhen/Guangzhou.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the
price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to
quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
>>
