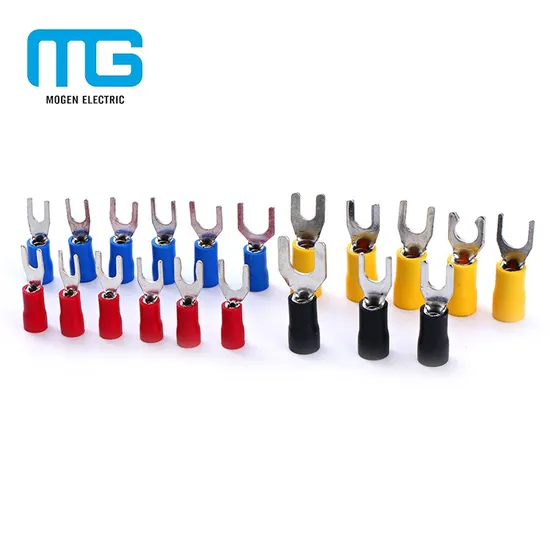

2024 Morgan Hot Selling Sv 5-6 Insulated Tin Plated Copper Full Wire Range Cable Wire Terminal Connectors

US$0.006 1,000,000 Pieces (MOQ)

Basic Info.

Model NO.
SV2-5
Application
Conduct Electricity, Transmission of Electrical Signals
Character
Insulation
Species
Terminal
Production Process
Cold Pressing
Shape
U
Interface Type
AC/DC
Certification
UL, Ce
Brand
Mogen
Color
White/Black/Red/Yellow
Plating
Tin
Main Material
Copper PVC
Transport Package
100PCS/Bag
Specification
SV2-5
Trademark
MG
Origin
Wenzhou
HS Code
8536900000
Production Capacity
100000bags/Month

Product Description


2024 Morgan Hot Selling Sv 5-6 Insulated Tin Plated Copper Full Wire Range Cable Wire Terminal Connectors
Product description
Cable Size:0.5-1.5mm2 (A.W.G 22-16) Max Current:1max=19A
ITEM NO. USA d2Φ(mm) Dimension(mm) Color
Screw B L F H DΦ
SV1.25-3.2 #4 3.2 5.7 21.2 6.5 10.0 4.3 Red
SVS1.25-3.5 #6 3.7 5.7 21.2 6.5
SVL1.25-3.5 #6 3.7 6.4 21.2 6.5
SVS1.25-4 #8 4.3 6.4 21.2 6.5
SVM1.25-4 #8 4.3 7.2 21.2 6.5
SVL1.24-4 #8 4.3 8.1 21.2 6.5
SVS1.25-5 #10 5.3 8.1 21.2 6.5
SVL1.25-5 #10 5.3 9.5 21.2 6.5
SVS1.25-6 1/4 6.4 9.5 21.2 6.5
SVL1.25-6 1/4 6.4 12 27.2 11
SV1.25-8 1/4 8.5 14.5 30.5 12.55
Cable Size:1.5-2.5mm2 (A.W.G 16-14) Max Current:1max=27A
ITEM NO. USA d2Φ(mm) Dimension(mm) Color
Screw B L F H DΦ
SV 2-3.2 #4 3.2 5.7 21.2 6.5 10.0 4.9 Blue
SVS 2-3.5 #6 3.7 5.7 21.2 6.5
SVL 2-3.5 #6 3.7 6 21.2 6.5
SVS 2-4 #8 4.3 6.4 21.2 6.5
SVM 2-4 #8 4.3 7.2 21.2 6.5
SVL 2-4 #8 4.3 8.1 21.2 6.5
SVS 2-5 #10 5.3 8.1 21.2 6.5
SVL 2-5 #10 5.3 9.5 21.2 6.5
SVS 2-6 1/4 6.4 9.5 21.2 6.5
SVL 2-6 1/4 6.4 12 27.2 11
SV 2-8 5/16 8.5 14.5 30.5 12.55
Conductor section:2.5-4mm2 (A.W.G14-12) 1max=37A Thickness:1.0mm
ITEM NO. American d2Φ(mm) Dimension(mm) Color
Bolt number B L F H DΦ
SV3.5-3 #4 3.2 5.7 24.8 7 13 6.2 Black
SV3.5-4 #8 4.3 8 24.8 7
SV3.5-5 #10 5.3 8 24.8 7
SV3.5-6 1/4 6.4 12 28 12.1
SV3.5-8 5/16 8.4 12 33.7 13.7
Conductor section:4-6mm2 (A.W.G12-10) 1max=48A Thickness:1.0mm
ITEM NO. American d2Φ(mm) Dimension(mm) Color
Bolt number B L F H DΦ
SV5.5-3.5 #6 3.7 8.3 25.2 7.5 13 6.7 Yellow
SV5.5-4 #8 4.3 8.3 25.2 7.5
SVL5.5-4 #8 4.3 9 25.2 7.5
SV5.5-5 #10 5.3 9 25.2 7.5
SVS5.5-6 1/4 6.4 9 25.2 7.5
SVL5.5-6 1/4 6.4 12 31.2 12
SV5.5-8 5/16 8.4 14 30 11.5
