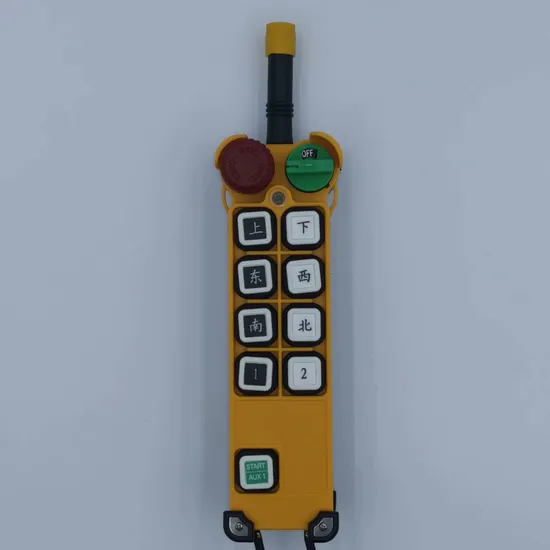

Classic F24-8d+ Crane Remote Controller 8 Double Speed Buttons Radio Control

Product Description

Transmitter
Dimension: 245*61*51 mm (including antenna)
Weight: 249 g (without batteries)
Power: DC 6V (4 AA size batteries)
Receiver
Dimension: 234*116*130 mm (including RX LED Indicator)
Weight: about 1240g (without wire cable)
Power Supply: (1)24/42/230VAC, 48/110/220VAC,
36/220/380VAC, 48/220/380VAC,
110/220/380VAC tolerance ±20%
(2)12~24 VDC
Features
1. PLL series (AFS Auto frequency selection)
2. 8S : 8 single step buttons, 1 start button , 1 EMS
button and 1 Rotary Key
3. 8D : 8 double step buttons , 1 start button , 1 EMS
button and 1 Rotary Key
4. Extraordinary design, all modules/parts/cables
fixing on the RX upper casing instead of lower
casing
5. Patented Receiver Housing, makes maintenance
easier and safer
6. RX large size LED indicator provides crucial
messages to guide the ground operator
7. Take & Release function, safety concept of first
come and first served
8. Auto frequency selection, best operating
experience and free from interference
9. Integrating hamming code and CRC code
technology, data modulation/demodulation
more accurate
10. Hamming distance >20 ,surpassing the industry
standard
11. Transmitter generates Security Random Code
signal with random coding to prevent spy
copying
12. Innovative e-Card (plug & play)design: Easy
transfer all system data to a spare transmitter
& receiver
13. Transmitter acting like an e-Card duplicator, can
be used for data back-up and transfer
14. Non-repeated 4.3 billion sets ID code
15. Low power consumption transmitter
16. Temperature range : -30°C ~ +85°C
17. Powerful function setting software (optional)for
easy customized configuration
18. Material : Fiberglass reinforced plastic materials
19. Standard configuration:
* Transmitter (with Protection cover)*1
* Receiver (with wire cable)*1
* User manual* 1
* self-tapping screws for RX fixing
