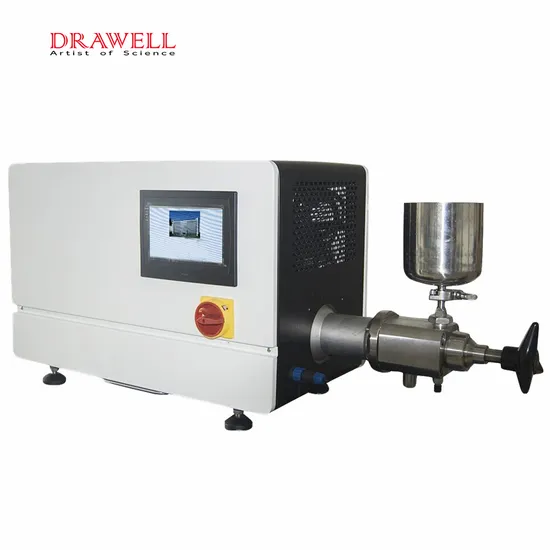

High Pressure Homogenized Mixer Machine Lab Sonicator Electric Homogenizer with Best Price
US$6,877.00-16,724.00
1 Piece
(MOQ)
Basic Info.
Model NO.
Drawell-D207A
Application Area
Pharmaceutical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Diving
Warranty
1 year
Working
High Speed Mixer
Maximum Working Pressure
1800bar / 180MPa / 26100psi Pressure Adjustable
Maximum Design Pressure
2070bar / 207MPa / 30015psi
Maximum Processing Capacity
15 L / H (250ml / Min)
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Standard Export Wooden Packaging
Specification
L1070 * W340 * H460mm
Trademark
Drawell
Origin
China
Production Capacity
300PCS/Month
Product Description
Product Description Drawell-D207A Ultra High Pressure Homogenizer Best Price Laboratory Homogenizer Mixer High Pressure Homogenizer Mini Goat Milk Pasteurizer and Homogenizer Main Technical Parameters
1) The maximum working pressure 1800bar / 180Mpa / 26100psi pressure adjustable 2) The maximum design pressure is 2070bar / 207Mpa / 30015psi 3) Maximum processing capacity 15 L / H (250ml / min) 4) The minimum capacity of 15ml 5) Material residue 0ml (no residue) 6) Motor power 3.0Kw / 380V / 50Hz 7) Overall dimensions L1070 * W340 * H460 8) Weight <60KG 9) Maximum feed particles & lt; 100 microns 10) Flow control Inverter control, adjustable flow and flow adjustable 11) Pressure, temperature sensors using the German brand pressure sensor optional thermostat bath Built-in cooler configuration cooler, does not consume materials, control homogeneous temperature 12) No need to exhaust 13) PLC touch screen 14) Using PLC control and 7-inch touch screen operation 15) Historical data storage, query 16) With temperature alarm and automatic protection 17) System high pressure and operating temperature are one digital 18) Real-time pressure and temperature curve display 19) Has the operation permission limit function 20) Electric control drive part of Japan's Matsushita servo motor 21) Condensate water connection plate with condensate access disk
Spares and tools: 1) One set of special tools 2) One standard spares package 3) Operation manual Detailed Photos
