Basic Info.
Output Type
AC Three Phase
Output Power
20(Kw)-200(Kw)
Rated Current
Depends on The Product
Frequency
Depends on The Product
Transport Package
Stretch Plastic Film or Wooden Box
Specification
Depends on The Product
Production Capacity
10000
Packaging & Delivery
Package Size
1800.00cm * 700.00cm * 1200.00cm
Package Gross Weight
1000.000kg
Product Description
Product Parameters

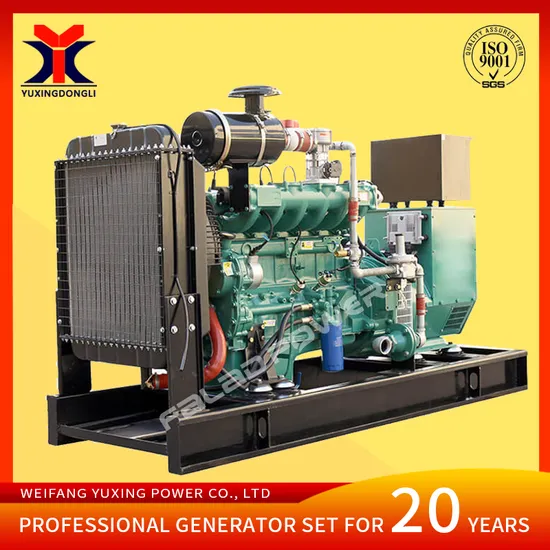

| YUCHAI GAS GENERATOR SET |
Genset
Model | Main
power | Standby
power | Motor
capacity | Engine Model | Engine | Rated
current | Gross
Weight | Dimensions |
Rated
power | Cylinders | Bore*
Stroke | Displacement |
| KW | KW | KVA | KW | mm | L | K | KW | L*W* Hmm |
| YXY160 | 160 | 176 | 200 | YC6MK270N-D30 | 180 | L6 | 123*145 | 10.338 | 288 | 2750 | 3100*1050*1750 |
| YXY180 | 180 | 198 | 225 | YC6MK315ND30 | 210 | L6 | 123*145 | 10.338 | 324 | 3000 | 3200*1150*1750 |
| YXY200 | 200 | 220 | 250 | YC6K350N-D30 | 235 | L6 | 129*155 | 12.94 | 360 | 3800 | 3400*1500*1950 |
| YXY250 | 250 | 275 | 312.5 | YC6K420ND30 | 281 | L6 | 129*155 | 12.94 | 450 | 3800 | 3400*1500*1950 |
| YXY350 | 350 | 385 | 437.5 | YC6TD600N-D31 | 400 | L6 | 152*180 | 19.6 | 630 | 4300 | 3500*1500*1950 |
| YXY400 | 400 | 440 | 500 | YC6C750N-D30 | 500 | L6 | 200*210 | 39.58 | 720 | 5200 | 4000*1500*2000 |
| YXY500 | 500 | 550 | 625 | YC6C935N-D30 | 625 | L6 | 200*210 | 39.58 | 900 | 5400 | 4200*1500*2000 |
| YXY500 | 600 | 660 | 750 | YC6C1020N-D30 | 680 | L6 | 200*210 | 39.58 | 1080 | 5500 | 4200*1500*2500 |
| YXY800 | 800 | 880 | 1000 | YC12VTD1350N-D30 | 900 | V12 | 200*210 | 79.17 | 1440 | 9800 | 5400*2150*2600 |
| YXY1000 | 1000 | 1100 | 1250 | YC12VC1680N-D31 | 1120 | V12 | 200*210 | 79.17 | 1800 | 14000 | 6500*2300*2600 |
Notes:1.yuchai Gas Generator set Frequency 50HZ,1500RPM,400V, power factor 0.8(lag), three - phase four-wire, if you need other special
requirements, please contact us to provide additional parameters.
2.This catalogue is for reference only and not for delivery information. Technical improvement is not subject to notice. Product model, specification,
configuration and picture are subject to delivery. Yuxing power reserves the right of final explanation. |
Product Description
ABOUT OUR COMPANY
Our strength
Certifications
After Sales Service
FAQ
1.What's our power capacity range of diesel generators?
Answer: We can offer the range from 10kva~3000kva.
2.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
3.Does your generator have global warranty?
Answer:Yes. the famous engines have the global warranty service. And the alterntors Stam ford, Leroy somer, Meccalte, Marathon also have the global warranty service.
4.Can you use our logo?
Yes,we offer the customization service as the clients request.
5. What is your package?
It's depends on your generator set type. The silent type will use the stretching plastic film package.The open type will use the wodden box normally,could consult your seller the details.
>>
