Wuxi Datang Automatic Heavy Duty Horizontal Edge Milling Machine

Product Description

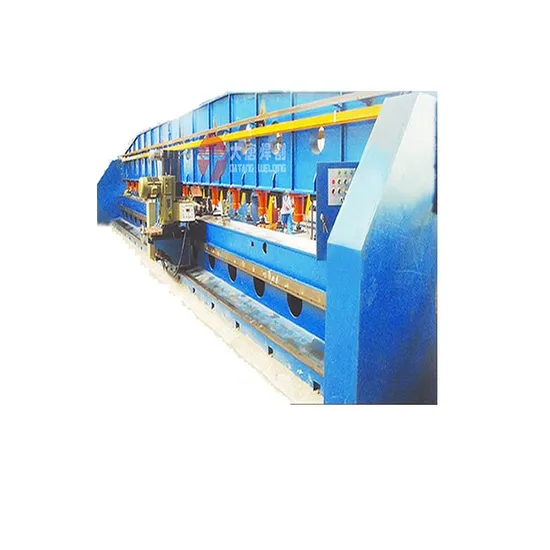

Wuxi DATANG Automatic Heavy Duty Horizontal Edge Milling Machine
Compare with the traditional edge milling machine, this series Edge Milling Machine has the assembable and dissambable track with heat-treatment, the lathe has the reasonalbe structure, the milling head running is steady and reliable, the feeding system and backing system is identified full, free speed is fast and effeciency is high, the milling head angle adjusting is easy, the tailor made milling facer and standard milling facer is changeable, which is the new generation product of the traditional milling machine.
The face milling machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.

Model	XB-6	XB-9	XB-12
Milling angle	0-45°
Milling plate thickness(mm)	6-50
Milling depth for one time(mm)	12
Transverse milling speed(mm/min)	300/500
Milling free speed(mm/min)	4000
Main shaft rotation speed	125-630
Hydraulic system pressure	≤3.5	≤3.5	≤3.5
Support platform cyclinder capacity(piece)	8	11	15
Support platform to the ground distance	900
Feeding motor power(kw)	1.1/0.85
Milling motor power(kw)		3
Oil pump motor power(kw)	5.5	5.5	5.5
Dimension(a×b×c)	7724×2600×2050	10724×2600×2200	13724×2600×2300

Packaging Details: Delivery Detail:

welding manipulator 1.Outside package:standard export wooden cases 2.Inner package:Stretch film about 14 workdays payment

30 days
