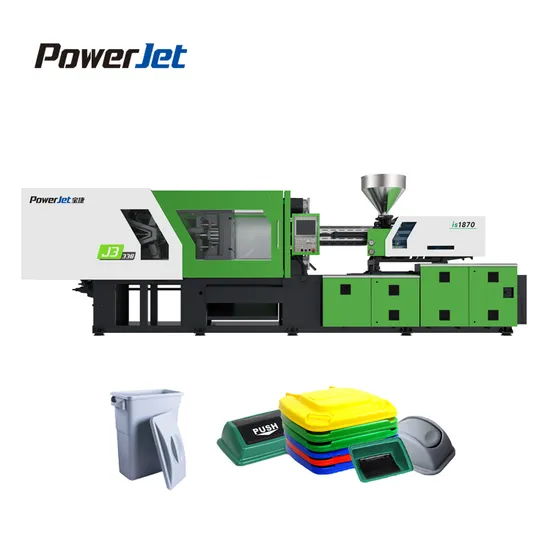

High-Speed Injection Molding Machine for 300 Ton Plastic Waste Bins

Product Description

Product Description
Specification

DESCRIPTION			UNIT	BJ330-V6/S6
LAMPING UNIT	Clamping force	KN	3300
		Opening stroke	mm	600
		Max.datlight	mm	1300
		Platen size	mm	985*985
		Space between bars	mm	670*670
		Max.mold height	mm	700
		Min.mold height	mm	300
		Ejector stroke	mm	180
		Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	68
		Screw L/D Ratio	L/D	21
		Injection Pressure	MPa	169
		Shot volume	cm3	1126
		Shot weight (ps)	g	1005
				oz	35.4
		Injection rate	g/s	328
		Screw stroke	mm	310
		Screw speed	rpm	193
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	37/50
		Heater power	KW	18
GENERAL	Oil tank capacity	L	460
		Machine weight	T	11
		Machine dimensions (L*W*H)	m	6.8*1.62*2.3

Company Profile


Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
