Atex GRP Explosion Proof Plug and Socket 3p Ne E 4p 16A 32A 63A

Product Description

Explosion-proof plug is composed of plug and socket. The shell is made of die-cast aluminum alloy. The socket is connected to the power supply end, and the plug is connected to the electrical equipment end. toggle switch. Explosion-proof plugs are divided into explosion-proof flameproof plugs and sockets and explosion-proof flowerless plugs
Explosion-proof plugs are composed of plugs and sockets, and are mainly used in chemical industry, various mines, petroleum, and places where explosion-proof is required. And subdivided into single phase. For lighting, three-phase, for machine tools and other places.
In engineering equipment, explosion-proof socket is one of the essential accessories. It is needed in various large-scale projects in the country or unit, so how to choose this equipment?
First, look at the exterior. If you don't look closely, you might think that all explosion-proof sockets look similar, at most only slightly different in color. In fact, a uniform appearance can reflect the quality of the material. Crude sockets are mostly made of poor materials.
Second, look at the structure. It mainly depends on the internal cable and interface material. If the metal material is rusty or has poor conductivity, it is of poor quality. Please do not buy.
Third, look at security. In the process of using the explosion-proof socket, if it is not tight enough, it is easy to cause safety problems.
Key Features1. The shell is made of glass fiber reinforced unsaturated polyester resin pressed or welded with high-quality stainless steel. It
is corrosion-resistant, antistatic, impact-resistant and has good thermal stability.
2. Stainless steel exposed fasteners, high corrosion resistance.
3. The enclosure is Safety-increasing type with flameproof switch inside.
4. Pluas are connected to electrical equipment.5. The socket is equipped with reliable mechanical interlocking device, that is, the switch can be closed only after the pluą is
inserted into the socket, and the plug can be pulled out after the switch is disconnected.
6. The socket is equipped with a protective cover. After the plua is pulled out, the socket is covered with a protective cover to
prevent sundries from.entering7.Steel pipe or cable wiring is acceptable.
Material:
glass fiber reinforced unsaturated polyester resin pressed or welded with high-quality stainless steel

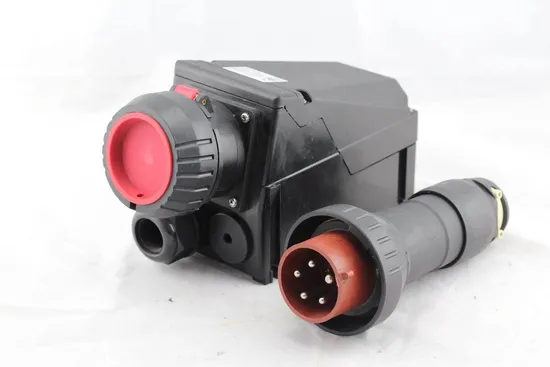

Detailed Photos
Product Parameters

Models	AC8060-16A	AC8060-32A	AC8060-63A
Rated Current [A]	16	32	63
The cable for plug	Φ3mm-Φ14mm	Φ11mm-Φ18mm	Φ17mm-Φ28mm
Inlet threads	G 3/4"	G 1"	G 1 1/2"
Rated Voltage	220/380VAC
Nos. of pole	1P+N+PE, 3P+N+PE,4P+N+PE,5P+N+PE
Ex rate	Ex d e IIC T4 Gb, Ex tD A21 IP65 T80ºC
Function	Electrical Outlet Connection
Degree of protection	IP65
Application	Zone 1&2 Zone 21&22
Note	linker used for connecting distance-cable, linker current is only limited to 16A.
Operating Temperature	-5ºC~+50ºC

Application scenariosAbrasive Blasting
Automotive Repair Services
Chemical Plants
Dispensing Areas
Distilleries
Industrial Process Facilities
Rail Yard
Drilling Rigs
Granaries
Wastewater And Sewage Plant
Gas And Oil Refineries
Food Processing Plants
Paint Booths
FAQ1.Why is Explosion Proof Lighting necessary in your area?
Plenty of commercial facilities have areas where lighting fixtures can come into contact with hazardous materials. These can be flammable, combustible, or ignitable materials, gases, or vapors. These areas can be at risk of fire or even explosion if the lighting fixtures can't withstand the abnormal conditions.
2.What is hazardous location lighting?
Hazardous location lighting refers to fixtures that you can safely use in an area where it's likely that fire might start. According to the National Electrical Code, hazardous locations are those areas "where fire or explosion hazards may exist due to flammable gases or vapors, flammable liquids, combustible dust, or ignitable fibers or flyings."
3.What is explosion-proof light fixture?
Explosion proof lighting refers to lighting fixtures that are able to contain sparks that could potentially the flammable and explosive gases in the atmosphere. Therefore, explosion proof lighting does not refer to lighting equipment that are resistant to explosions but rather, the capacity to prevent external explosions from occurring in a hazardous location.
4.What environments require hazardous location lighting?Presence of Flammable Liquids and Gases
Wherever flammable gases and liquids are present, the location may be identified as a hazardous one because such compounds can cause an explosion or catch fire.
Gas and liquids have to achieve a critical concentration before it becomes dangerous. However, once they do, that's when a potential disaster can occur. Company ProfileAs a leading supplier of explosion proof lighting,Lamp suite is dedicated to helping you illuminate numerous settings with powerful and durable lighting systems. We've assisted a variety of businesses with projecting sufficient lighting across the work space or public area, including:
- Commercial scenes
- Government projects
- Mining sites
- Remote accommodation sites
- Warehouses & other industrial environments
Our explosion proof lighting is designed using technologically advanced methods with both economical and ecological results. Lighting is a crucial aspect of successful workflow and, therefore, your business' profit. Finding suitable lighting for the work site that won't falter under extreme circumstances is what makes it most reliable in any situation. Lamp suite explosion proof lighting is 100% certified with non-spark, durable, and thick materials, along with all necessary features to maintain a high level of safety at all times.
So, what makes Lamp suite different?
Our expertise in solar and technical lighting solutions allows us to give you the appropriate explosion proof lighting to suit you and your business's needs the best. As a result, you can expect outstanding LED performance, lower costs, increased productivity, and safety adherence to give you and your workers total peace of mind.
Lamp suite has a passionate team aiming to help you create a safe working or public environment where workers, pedestrians, shoppers, or anyone nearby can feel comfortable moving around.

---
