Product Description
Product Description
Model
| Main power KW
| Feeding power
KW
| Cutter power
KW
| Spiral diameter
mm
| Productivity
t/h
| Size
mm
| Weight
kg
|
DGP40
| 4.0
| 0.4
| 0.4
| 40
| 0.03-0.04
| 1400x1030x1200
| 240
|
DGP50
| 11
| 0.4
| 0.4
| 50
| 0.06-0.08
| 1400x1030x1200
| 320
|
DGP60
| 15
| 0.4
| 0.4
| 60
| 0.12-0.15
| 1450x950x1430
| 480
|
DGP70
| 18.5
| 0.4
| 0.4
| 70
| 0.18-0.25
| 1600x1400x1450
| 600
|
DGP80
| 22/27
| 0.4
| 0.75
| 80
| 0.3-0.35
| 1850x1470x1500
| 800
|
DGP90
| 30/37
| 1.1
| 1.5
| 90
| 0.4-0.45
| 1900x1500x1600
| 1200
|
DGP100
| 37
| 1.1
| 1.5
| 100
| 0.45-50
| 2000x1600x1600
| 1500
|
DGP120
| 55
| 1.1
| 2.2
| 120
| 0.5-0.7
| 2200x2010x1700
| 1850
|
DGP135
| 75
| 1.1
| 2.2
| 135
| 0.8-1.0
| 2600×2200×1850
| 2500
|
DGP160
| 90
| 1.5
| 2.2
| 160
| 1.2-1.5
| 2800x2400x1850
| 2800
|

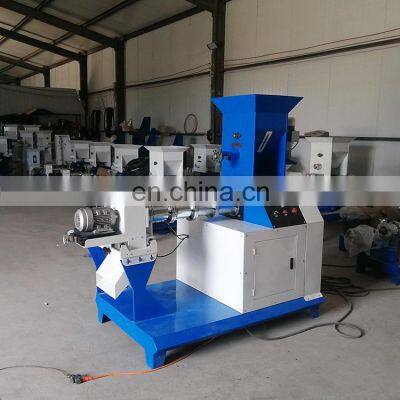

Fish food making machine is a kind of equipment used to process fish pellet feed. The use of feed pellet machines can reduce feed costs, reduce feed waste, and farmers can obtain higher economic benefits.
Operation steps:
1. Mix the raw materials and mix them.
2. Pour the mixed raw materials into the feed bin.
3. Turn on the cutter switch and adjust the cutter speed.
4. Adjust the distance between the cutter and the mold to control the size of the particles.
5. Turn on the host switch (green start button) to ensure the positive selection of the motor
6. Turn on the feeding switch and adjust the feeding speed. The final product pellets are obtained.
7. When the production is completed, turn off the main motor, turn off the cutter switch, and turn off the feed switch.
8. After stopping, remove the protective cover and keep the machine idling for one minute.
9. Take out the screw, clean it up, and clean up the mold for next use.
Main market:
Our products have a vast overseas market and are very popular in Nigeria, Mali, Niger, Cameroon, Malaysia, Peru and other countries.
Advantage:
1. Simple structure, wide adaptability,
2. Less floor space and low noise.
3. Pellet feed is more conducive to storage.
4. Feeding animals can obtain higher economic benefits.
5. The produced feed pellets have a smooth surface and internal maturation, which can improve the digestion and absorption of nutrients.
6. The particle formation process can reduce various insects and digestive system diseases.
Contact Us
FAQ
1. How big is the output?
40-1000 kg/h.
2. What kind of feed can be used?
Aquatic feed, pet feed.
3.Can it be equipped with a diesel engine?
Yes,of course .
4. How big are the particles?
Change different molds to make different shapes and sizes.
5.What are the raw materials?
Grain meal, fish bone meal, etc.
6. Can feed formula be provided?
Yes, available after order
7. What material is the machine made of?
The part in contact with the material is stainless steel
8. How many molds can one machine match?
4, optional shape
9. What are the wearing parts?
Screw sleeve, screw, mold.
>>
