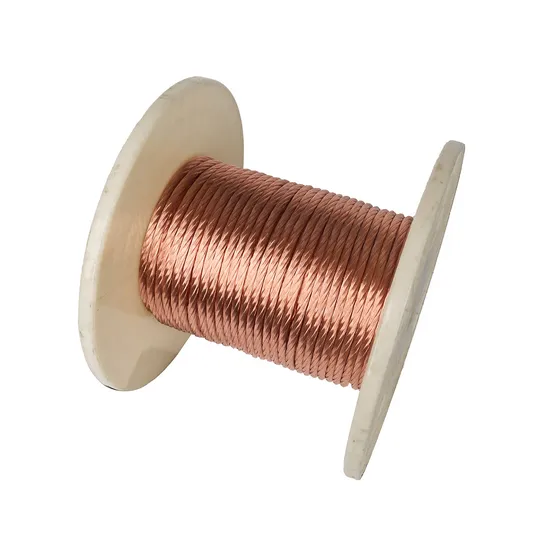

Underground Round Wire ABS Spool Coaxial Cable Copper Clad Aluminum

Product Description

Copper Clad Aluminium CCA wire
Application
1.Lan Cable
2.Power Cable
3.Control Cable
4.Conductor for coaxial cables
5.Construction wiring
6.Bus-bar
7.Fuse
8.RF shielded cable
9.Extension-cord
Our Advantages
1.Better price-less expensive than copper,reducing costs of material for cable production.
2.Higher conductivity-electrical conductivity much higher than pure aluminum.
3.Lighter weight-easy to transport and install thus saves labor cost.

Product Description

CCA Wire (AWG)Note:					Note:
Technical Characteristics	Clad type
	10H	10A	15H	15A
Size range	0.12mm-8.00mm	0.12mm-8.00mm	0.12mm-8.00mm	0.12mm-8.00mm
Copper content (by weight)	25%-31%	25%-31%	32%-40%	32%-40%
Resistivity (max at 20ºC)	0.02743 Ω.mm²/m	0.02743 Ω.mm²/m	0.02676 Ω.mm²/m	0.02676 Ω.mm²/m
Density	3.32g/cm²	3.32g/cm²	3.63g/cm²	3.63g/cm²
Conductivity (max at 20ºC)	62%	62%	64%	64%
Elongation	1%-3%	8%-25%	1%-3%	8%-25%
Tensile Strength	≥250Mpa	≥110Mpa	≥250Mpa	≥110Mpa

Package Details

NO.	DIN130MM	DIN185MM	DIN250MM	DIN400MM	DIN800MM
A	130MM	185MM	250MM	400MM	800MM
B	65MM	130MM	160MM	160MM	370MM
C	100MM	160MM	160MM	260MM	490MM
D	120MM	180MM	200MM	290MM	520MM
E	21MM	31MM	31MM	56MM	126MM

Ramk:Can be customized
Certifications

Production Facility

Quality Control Centre

FAQ

Do you accept OEM or ODM?
Of course.We also have a professional design team who can assistant you to design.
What is minimum order quantity?
Usually accept 200 kgs for trial order , it is depended on different items with different materials and sizes.Please kindly contact us for details! Thanks!
What is your sample policy?
1.Paid samples are available as per requirement and specifications.Usually we only charge $50/time,usually within 10kgs.
2.Sample will be sent to you by express with freight collect, so please inform us your courier account number,or you can prepay to us the express cost which we have best channel lower to 70% discount.
What certification do you have?
Our product has passed the ISO certificate.Quality management system,American needed certification,also complete the BSCl audits.And some other needed third party test report and certifications.
What information should I let you know if i want to get a quote?
Please offer the specification of the product if possible.Such as material,Package requests,Electric Conductivity,Resistance,Content list, quantity.etc.Or contact us directly just by a thought. What is the delivery date?
Our products are normally shipped about 25 days after order confirmation. But it may take longer or shorter up to different order quantity.
How can I know order status?
We will acknowledge receipt of your order by e-mail. Some further emails will be sent to you to check about the production details of your goods by specific sales assistant. We will contact you if we have any queries about productions .lf you don't receive any email from us, which means your production goes smoothly and will be shipped as our contract. You can also contact us if you have any question. PP sample photos will send to you before we produce,Bulk sample photo wil send to you before we ship.

---
