US$12,500.00-135,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Carrying Capacity
Middle-Level
Certification
CE, ISO 9001
Size of Platform
2.44*0.91*1.1m
Production Capacity
100units/Month
Product Description
-Made of high strength steel, and the European production of hydraulic, control, parts;
-Pipeline all the built-in, to avoid the sun and rain or foreign objects tangled;
-Shape lightweight, low pressure rubber tracks on the ground, can travel, work on any ground;
-Outrigger separately controlled to bypass obstacles in a limited space work;
-Reliable torque control to ensure that the vehicle will not roll;
-Wired remote control walks, working bucket with 220V outlet;
-Small size, compact and flexible;
| | Wuhan Kudat Industry & Trade Co.,Ltd |

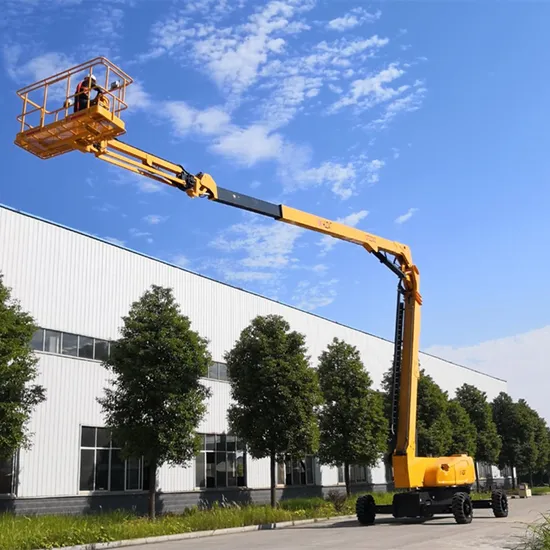

| 16-34M Electric Telescopic Boom Lifts |
| Technical Parameters |
| Model | RL16E | RL20E | RL22E | RL24E | RL29E | RL34E |
| Size |
| Max working height | m | 16 | 20 | 21.6 | 23.5 | 28.6 | 34 |
| Max platform height | m | 14 | 18 | 19.6 | 21.5 | 26.6 | 32 |
| Max horizational outreach | m | 12.6 | 15 | 13.7 | 15.8 | 18.5 | 20.6 |
| Platform dimensions(LxW) | m | 1.83x0.76 | 2.44x0.91 |
| Length(stowed) | m | 8.55 | 9.07 | 10.06 | 9.1 | 10.76 | 12.6 |
| Width(stowed) | m | 2.28 | 2.38 | 2.5 | 2.58 |
| Height(stowed) | m | 2.58 | 2.59 | 2.83 | 3.03 |
| Wheelbase | m | 2.5 | 3 |
| Ground clearance(center) | m | 0.32 | 0.35 | 0.46 | 0.37 |
| Performance |
| Max lift capacity | kg | 300 | 480 |
| Max platform occupancy | | 2 |
| Platform rotation | | ±90° |
| Vertical jib rotation | | 135° |
| Turntable rotation | | 360° | 360°Continuous |
| Drive speed(stowed) | | 4.4 | 5 |
| Drive speed(raised) | | 1.1 |
| Gradeability | | 40% | 45% |
| Max working slope | | 5° |
| Turning radius(inside) | | 1.87 | 1.82 | 2.1 | 1.6 | 2.6 |
| Turning radius(outside) | | 4.8 | 4.85 | 5.4 | 4.73 | 6.15 |
| Drive & steer mode | | 4x2x2 | 4x4x2 |
| Tire type | | 33x12-20 | 36x14-20 | 385/65-22.5 |
| Power |
| Battery | V/Ah | 48/390 | 48/300(Li-ion)
48/390(Pb-A) | 80/52(Li-ion)
80/560(Pb-A) |
| Pump motor power | kW | 7.5 | 12 | 23 |
| Drive motor power | kW | 2x4 | 4x4 |
| Charger | V/A | 48/60 | 80/60 |
| Hydraulic tank capacity | L | 150 | 110 | 160 |
| Control Voltage | V | 12 |
| Weight | kg | 7500 | 9500 | 9000 | 10000 | 12000 | 18500 |
| Standard Compliance | | EN280:2013+A1:2015 GB25849-2010 |
>>
