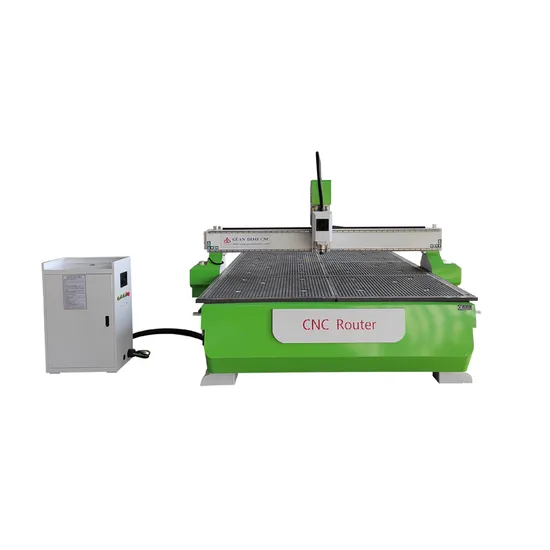

3D Design Wooden Craft Engraving Cutting Wood CNC Machine Sign 2040 CNC Router with Vacuum Table

Product Description

>>>Technical Parameters

Working area	2000*4000mm
Travelling speed	20m/min(MAX)
Working speed	12m/min(MAX)
Working voltage	AC220V(Optional 380V)
Spindle power	Water cooled 3.2KW-24000RPM
Device architecture	One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small deformation
Driving system	XYZ: 86 high torque stepper drive motor and drive
Rack and pinion	The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack
Guide Rails	Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw
Operating system	Weihong
Platform structure	Aluminum profile + fixture
Electrical accessories	Omron, Chint
Inverter	Best
Power cable	Shanghai customized high-soft high-speed shielding cable, anti-interference and anti-breakage
Lubrication system	Oil pump centralized lubrication control
Security system	Overtravel protection, electrical protection etc.
Dust collector	2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood
Fastenings	The transmission parts are fixed with high strength 12.9 class screws, and the sheet metal is fixed with 304 stainless steel screws
Accuracy	Each axis is fixed rigidly, and the locating pin is added to the precision part
Quality Control	Incoming material, process, delivery full control, 24 hours machine test

>>>Details
Spindle
HQD/WHD 3.5kw air cooled spindle, low noise, high cutting force and high efficiency.
Rack & Rail
Helical rack Taiwan HIWIN 20 square guide rail
Control cabinet
Independent control cabinet with Leadshine 860H Stepper drivers
Lubrication
Automatic oil lubricating system
>>>Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
NEW 1325/1530 woodworking cnc atc machine linear type atc tool changer cnc router with 12/16 pcs tools atc nesting machine 2040

>>>Packing and Shipping
>>>Our company
Samet Intelligent Manufacturing Co., Ltd.
SAMET has been deeply engaged in the manufacturing of laser intelligent equipment for 11 years. It is headquartered inJINAN, China .It is a national high-tech enterprise focusing on laser application solutions such as laser cutting, tube cutting, precision cutting, laser welding, laser marking, CNC bending, and automation equipment.
SAMET has established branches and service outlets in 30% of the countries and regions around the world to promote the process of global intelligence and has more than 200 patents and certificates. SAMET adheres to the quality route and forms 139 production and inspection procedures higher than the industry standard. With the mission of "Laser technology makes a better world", its high-quality products and after-sales service have won high praise from customers.

>>>FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need SAMET technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.

Q:Why the machine price not include fiber source and tube parts ?
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .

---
