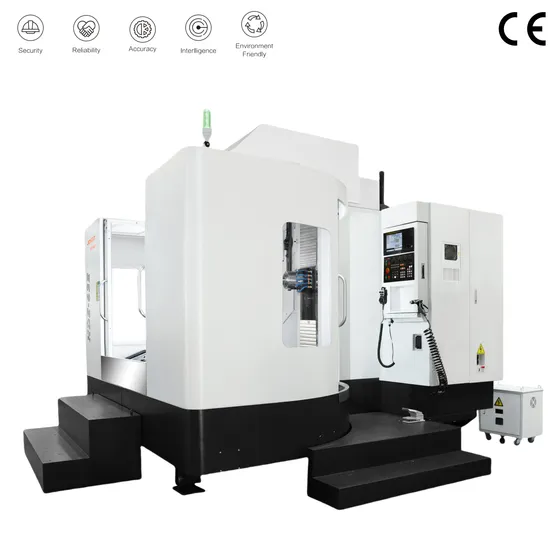

Advanced High-Accuracy Horizontal Machining Centers for Industrial Applications

Product Description

Product Description
Basic Specifications:

Main technical parameters	Unit	HDE63E	HDE80E	HDE125E
Travel
X-axis travel	mm	1100	1400	2000
Y-axis travel	mm	950	950	1150
Z-axis travel	mm	900	900	1150
Distance from nose of spindle to table surface	mm	135- 1035	150-1050	350-1150
Distance from spindle center to table top	mm	135- 1085	100-1050	20-1170
Rail type		Linear Roller Slides (X, Y, Z)	Linear Roller Slides (X, Y, Z)	Linear Roller Slides (X, Y, Z)
Workbench
Table size(X*Y)	mm²	630*630	800*800	1250*1250
Table weight	kg	1200	2000	5000
B-axis indexing (continuous indexing)	mm	0.001	0.001	0.001
T-slot size (width X distance X number of slots)	mm	18*100*5	22*100*7	22*200*5
Spindle
Spindle speed	rpm	40-6000	40-6000	40-6000
Spindle taper		BBT#50(ISO50)	BBT#50	BBT#50(ISO50)
Number of spindle speed changes		Belt type	Belt type	Belt type
Feed rate
Rapid feed rate (X/Y/Z/B)	m/min	24/24/24/10rpm	24/24/24/10rpm	10/12/10/3rpm
Fastest cutting feed rate	mm/min	8000	8000	8000
Tool change system
Tool shank type		MAS403-BT50	MAS403-BT50	MAS403-BT50
Tool magazine capacity		30 (40,60)	30 (40)	30 (40)
Tool selection method		Automatic tool change	Automatic tool change	Automatic tool change
Tool change time	sec	(T to T) 10.5	(T to T) 10.5	(T to T) 10.5
Maximum tool diameter/neighboring empty diameter	mm	Ø110/Ø200	Ø110/Ø200	Ø110/Ø200
Maximum tool length	mm	350	350	350
Max. tool weight	kg	18	18	18
Motor
Spindle motor (continuous/30 min)	kW	15/18.5	15/18.5	15/18.5
Servo motor	kW	3.0/3.0/3.0/3.0	3.0/3.0/3.0/3.0	3.0/3.0/3.0/3.0
Total power supply	KVA	45	45	45
Cooling box
Cutting fluid capacity	liters	350	350	380
Lubricant tank capacity	liters	6	6	6
Machine accuracy
Positioning accuracy JIS B6338	mm	±0.005/300	±0.005/300	±0.005/300
Positioning accuracy VDI/DGQ3441	mm	0.015	0.015	0.015
Repeatable positioning accuracy JIS B6338	mm	±0.003/300	±0.003/300	±0.003/300
Repeat positioning accuracy VDI/DGQ3441	mm	0.01	0.01	0.01
System
Controller		FANUC 0I-MF	FANUC 0I-MF	FANUC 0I-MF
Other
Machine weight	kg	15000	17000	24000
Machine height	mm	3200	3200	3600
Floor space (L*W)	mm²	3762×5928	4102×6128	6400×5912

Our Advantages
HMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This HMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Detailed Photos
Company Profile
Packaging & Shipping

FAQ
1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
We provide one year warranty, if any parts broken, we will send you a new one for free.

7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
